Ultra Fine Steel Shot

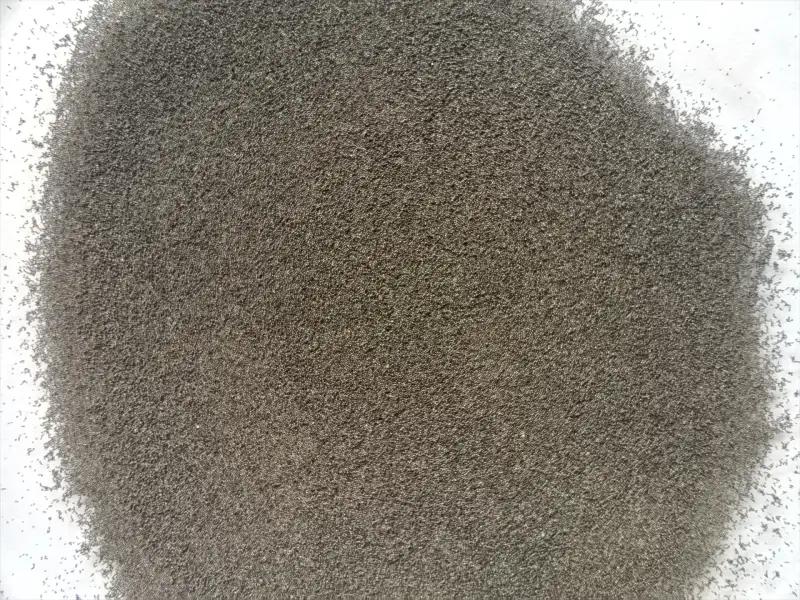

Ultra Fine Steel Shot is a super-fine particle blasting medium developed by LuXing Metal for precision surface treatment
1 / 7Technical Overview
Ultra Fine Steel Shot UFSS | Super-fine blasting medium, particle size 0.1-0.7mm, high-carbon steel spherical abrasive. For precision shot peening, micro-deburring & ultra-precision surface finishing. Low RA, safe for thin-walled parts, penetrates micro-holes & narrow gaps. First choice to replace glass beads & non-metallic abrasives.
Ultra Fine Steel Shot is a super-fine particle blasting medium developed by LuXing Metal for precision surface treatment. Made from premium high-carbon steel via advanced atomization, it delivers excellent sphericity, uniform particle distribution, and soft impact characteristics. Compared to standard steel shot, ultra fine shot features significantly smaller diameters (0.1–0.7 mm), enabling deep penetration into micro-holes, narrow gaps, and complex internal cavities — making it irreplaceable in precision component processing.
Core Technical Features
| Feature | Description |
|---|---|
| Ultra-Fine Particles | Reaches narrow gaps, micro-holes, and complex cavities inaccessible to conventional media |
| Soft Impact | Low surface roughness (RA), safe for thin-walled and precision substrates |
| Uniform Size Distribution | Tight particle size control ensures batch-to-batch consistency |
| Extended Durability | High density, crush-resistant — far greater recycling cycles than non-metallic media |
| Refined Finish | Delivers a smooth, satin-like surface without excessive erosion |
Application Fields
1. Precision Shot Peening
- Precision springs (watch mainsprings, micro valve springs, electronic connector elastic components)
- Micro gears, micro bearings, precision transmission parts — fatigue life enhancement
- Medical implants, orthopedic instruments, dental implant surface strengthening
2. Micro Deburring
- Precision machined edge micro-burr removal (preserves edge sharpness)
- Hydraulic / pneumatic precision valve body cross-hole deburring
- Electronic connectors, contact terminals — precision deburring
3. Thin-Walled Parts Finishing
- Thin-walled tubes, bellows, metal diaphragms — internal & external finishing
- Precision casting surface cleaning (preserves casting contour accuracy)
- Watch & clock precision components — matte / satin finishing
4. Fine Internal Cavity Cleaning
- Fuel nozzles, carburetor internal channel cleaning
- Mold cooling channels, vent micro-hole de-clogging
- 3D-printed metal parts — residual powder & support structure removal
- Heat exchanger micro-tube inner wall oxide scale cleaning
5. Robotics & Automation (Fast-Growing Sector)
- Collaborative robot precision joint gears, harmonic drive flexspline strengthening
- Industrial robot end-effectors (grippers, suction cup connectors) finishing
- Service robot precision drive components — deburring & surface refinement
- Surgical robot micro-instruments surface treatment
- Machine vision system precision mounts, sensor housings — matte finishing
Contraindications
Strictly prohibited for heavy rust removal, thick coating stripping, casting riser/cut-off mark grinding, or any high-impact operations — use steel grit or chilled iron grit instead.
Technical Specifications
| Model | Particle Size (mm) | Recommended Applications |
|---|---|---|
| S030 | 0.1 – 0.2 | Micro bearings, watch parts, micro-electronic connectors |
| S050 | 0.15 – 0.3 | Precision springs, implantable medical devices |
| S070 | 0.2 – 0.4 | Micro gears, fuel injector nozzles |
| S110 | 0.3 – 0.6 | Harmonic drive flexsplines, robot joint components |
| S130 | 0.4 – 0.7 | Thin-walled castings, 3D-printed part cleaning |
| S170 | 0.5 – 0.7 | Precision valve bodies, heat exchanger tubing |
Key Differences vs. Standard Steel Shot
| Dimension | Ultra Fine Steel Shot | Standard Steel Shot |
|---|---|---|
| Particle Size Range | 0.1 – 0.7 mm | 0.2 – 3.0 mm |
| Impact Intensity | Gentle, low-stress | Moderate to high impact |
| Accessibility | Penetrates micro-holes & narrow gaps | Open surfaces only |
| Surface Roughness | Fine (RA 0.8–2.5 μm) | Medium (RA 2.5–6.0 μm) |
| Typical Use | Precision peening, micro-deburring, finishing | Cleaning, peening, surface preparation |
Applications
Core Technical Advantages
Secondary Quenching Process
After primary centrifugal quenching, we apply a second hardening cycle. This creates a denser microstructure, significantly inhibiting carbon deviation. The result: 1.3× longer service life, lower breakage rate, less dust, better elasticity and faster cleaning speed.
Manufacturing Process
8-step controlled production — from raw steel to finished abrasive media, every stage is engineered for consistency.
Smelting
Electric Arc Furnace
Adjust steel composition to reduce harmful sulfur and phosphorus content.
Refining
Ladle Refining
Further purify molten steel to ensure superior material quality.
Granulation
Centrifugal Casting
High-speed centrifugal forming controls shape quality and minimizes physical defects.
Selection
Defect Separation
Remove hollow or deformed particles to improve shot density and uniformity.
Quenching
Secondary Hardening
Double quenching refines grain structure, enhancing toughness and inhibiting carbon deviation.
Tempering
Precision Heat Treatment
Precise temperature and time control achieve optimal hardness uniformity across batches.
Crushing
Grit Production
Unique crushing process improves grit fullness and angularity while minimizing internal cracks.
Fine Sieve
SAE J444 Grading
Precision screening guarantees every batch meets American SAE-J444 standard.
Why Choose LuXing Metal?
Quality Assurance Laboratory
Every production batch is verified by 5 types of precision instruments before leaving the factory. Test standards aligned with ASTM E92, GB/T4340.2 and ISO 6507-2.
Hardness Tester
ASTM E92 · GB/T4340.2Friction-free spindle with automated testing. Precision micrometer system eliminates human error. Compliant with ASTM E92, GB/T4340.2 and ISO 6507-2.
Metallographic Microscope
MicrostructureIdentifies and analyzes the microstructure of metals and alloys. Validates raw material quality and verifies post-treatment microstructure integrity.
Multi-Element Analyzer
Si · Mn · P · Cr · NiDetects Si, Mn, P, Cr, Ni, Mo, Cu, Ti in cast iron, stainless steel, carbon steel and alloy steel. Fast and accurate multi-element screening.
Carbon & Sulfur Analyzer
High-Tech IntegrationOptical-mechanical-electrical-computer integrated system. Wide measuring range, strong anti-interference, accurate and reliable C/S determination.
Fatigue Testing Machine
80 m/s · 200g SampleSimulates real blasting conditions at 80 m/s centrifugal speed with 200g samples. Sieving-recycling loop measures actual shot durability under production stress.
Ultra Fine Steel Shot · UFSS Micron Classification
Three precision grades with micron-level control. Choose the right spec in one step.
Precision shot peening · Thin-walled part finishing
3D printing powder removal · Micro-deburring
Medical device treatment · Micro-cavity cleaning

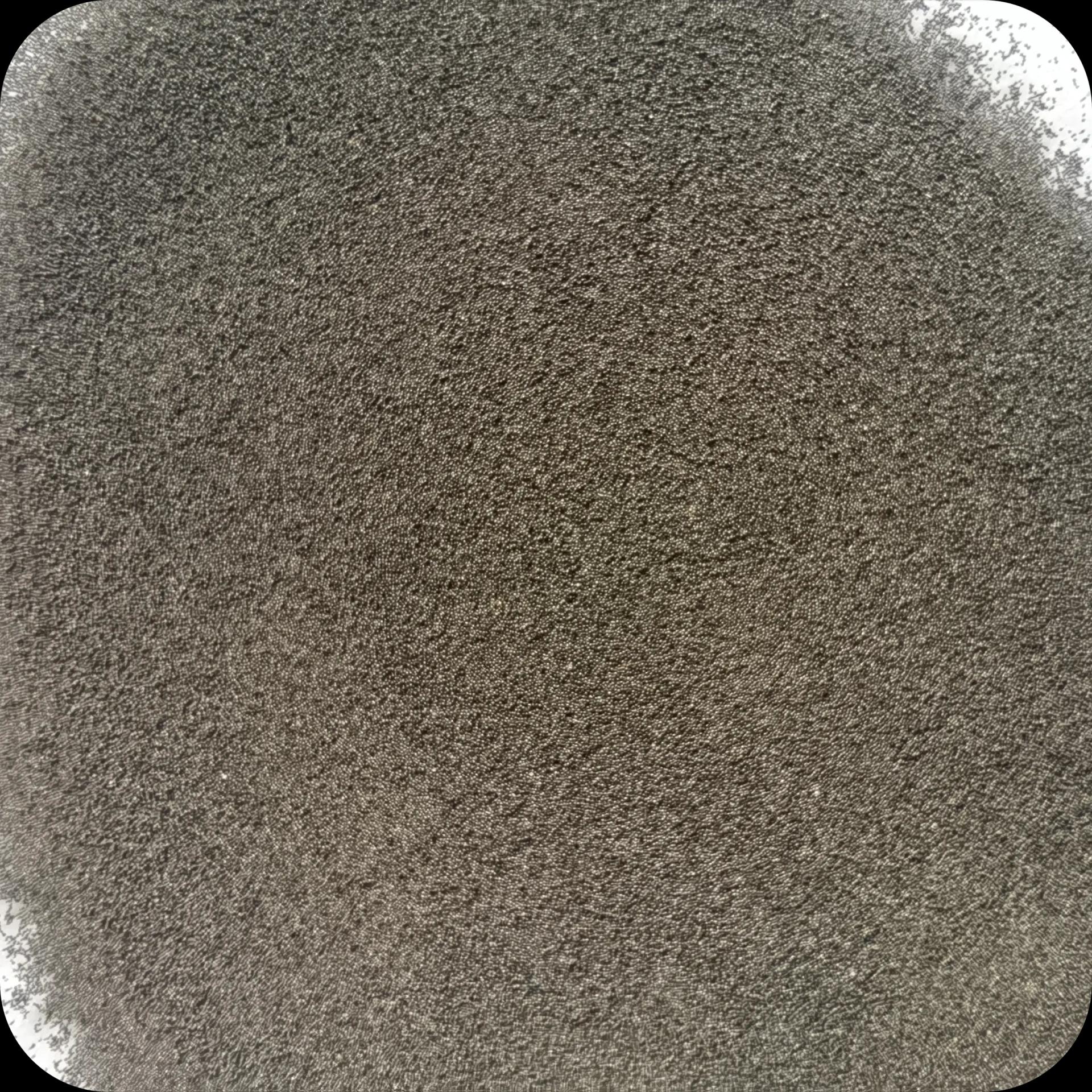

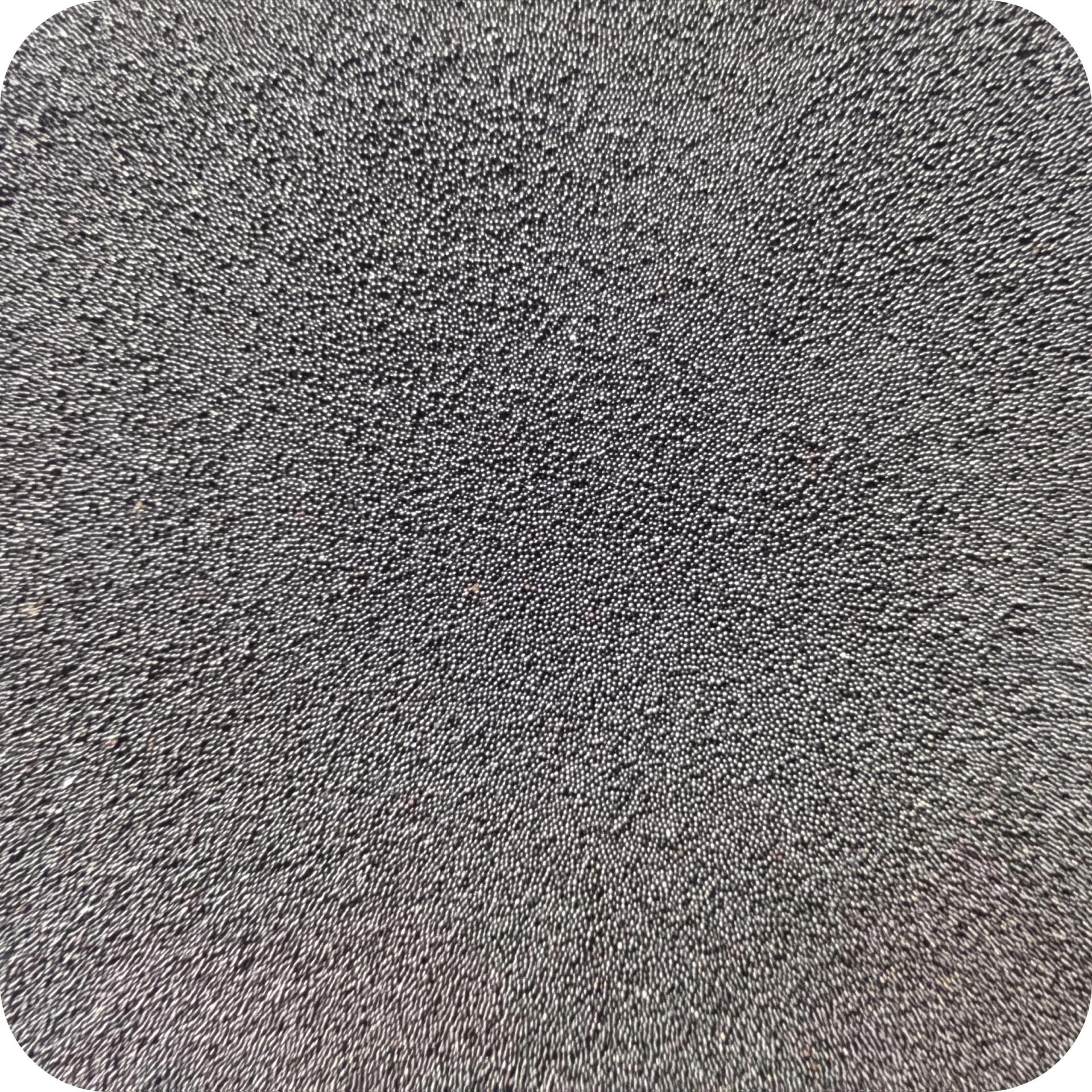

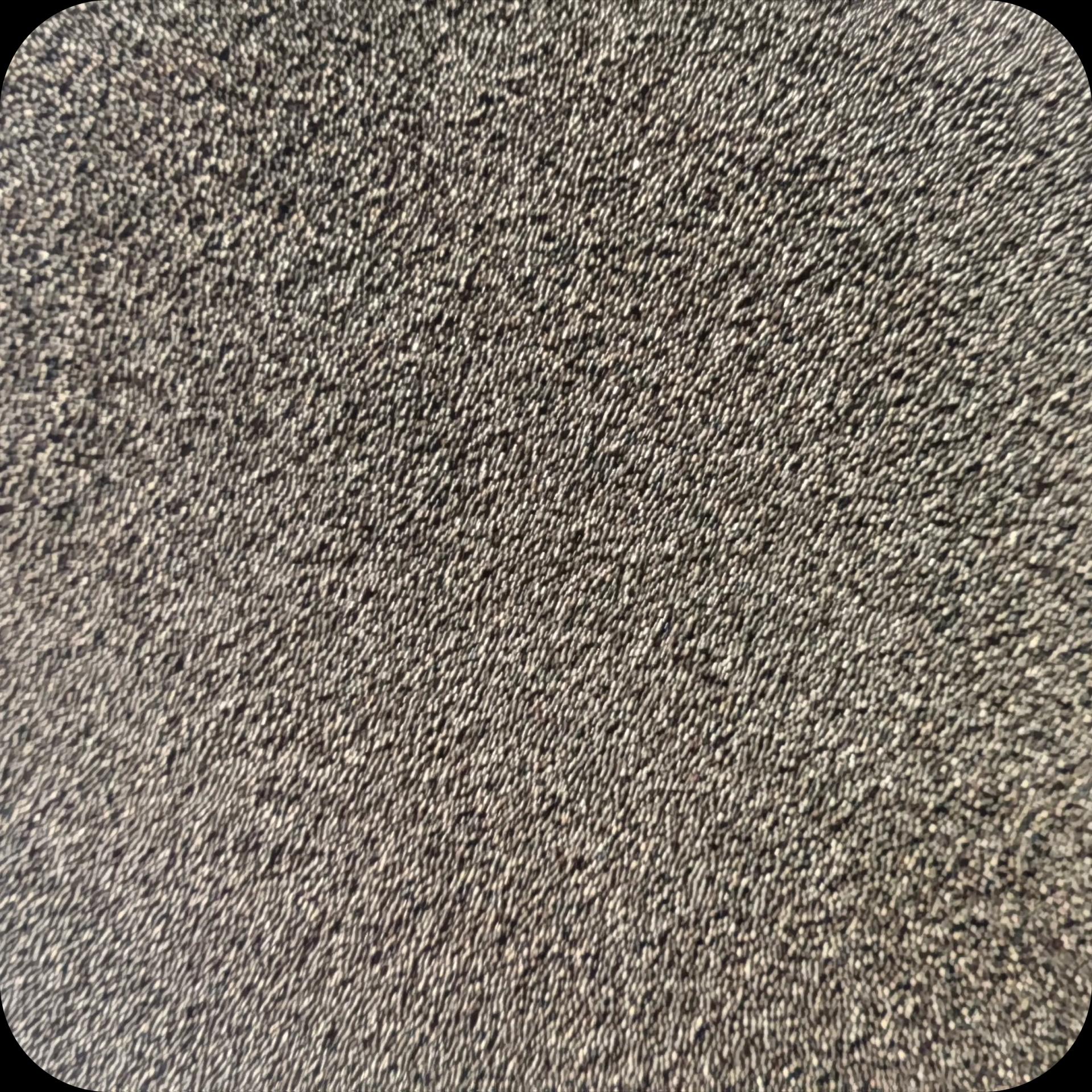

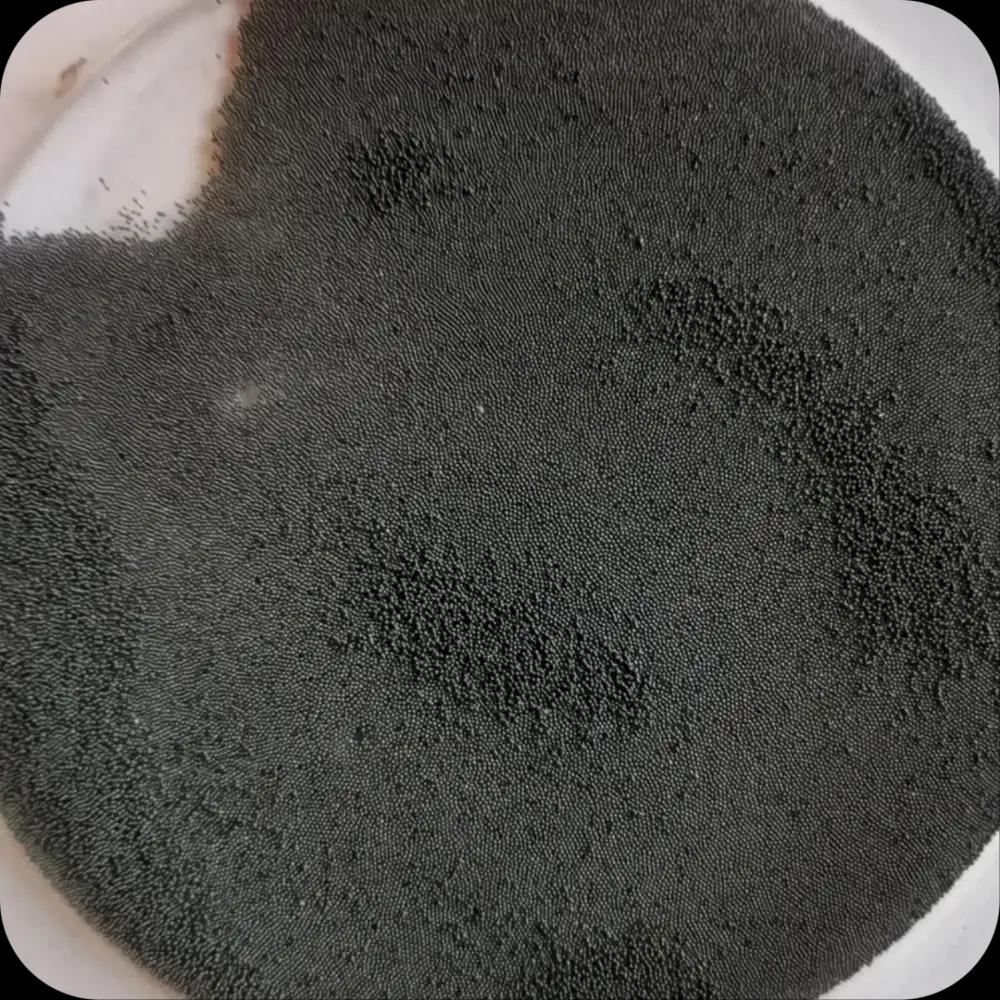

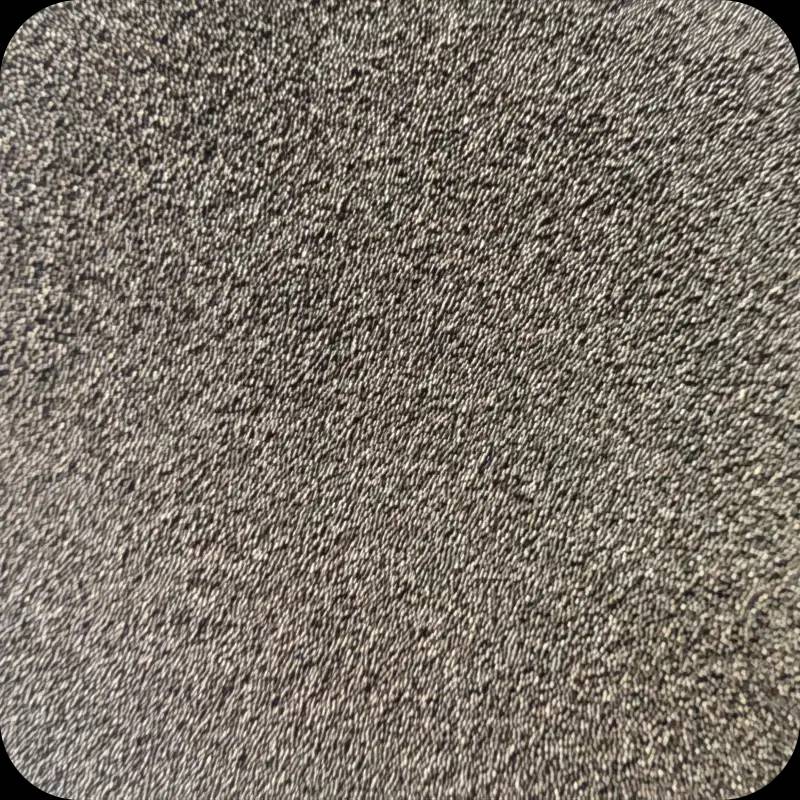

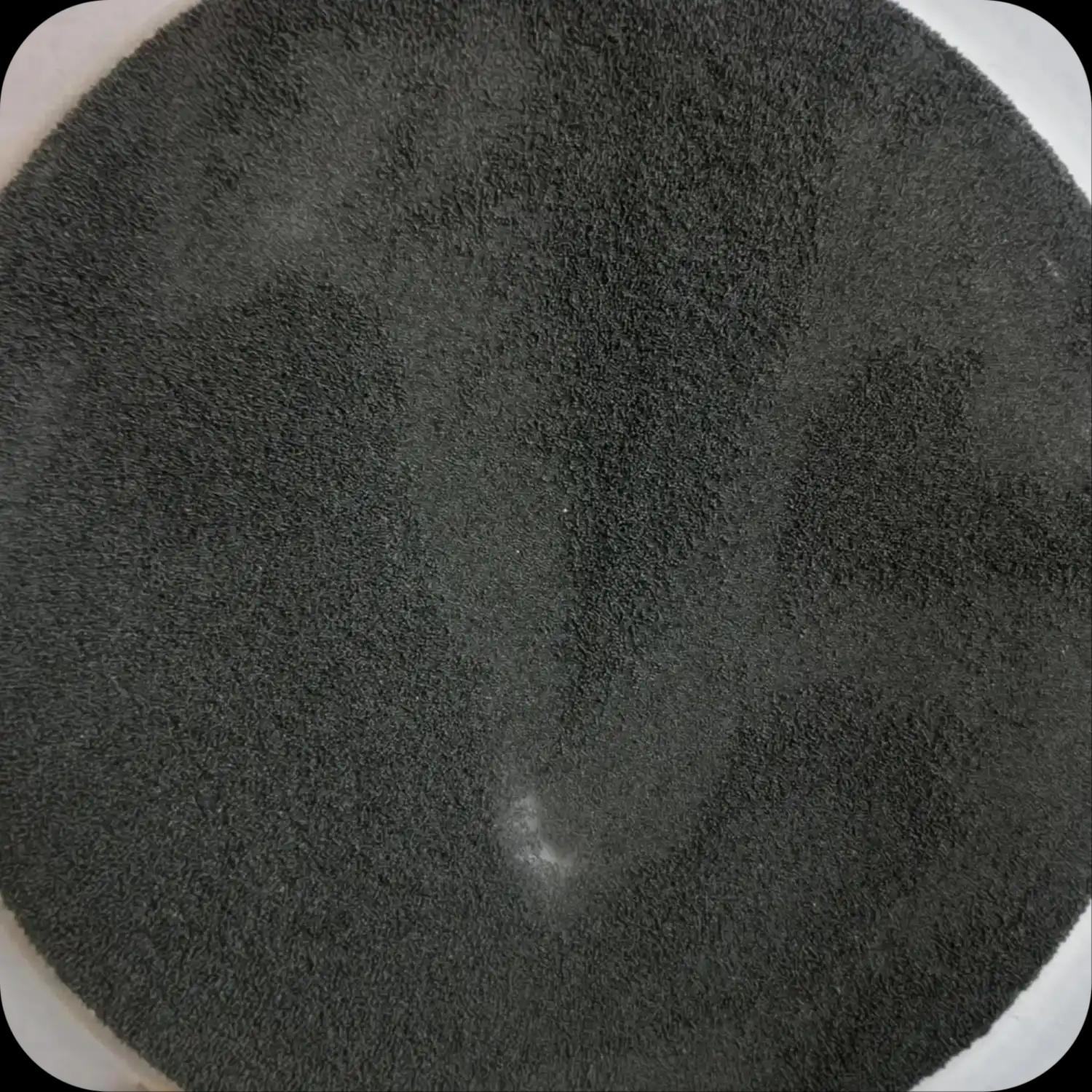

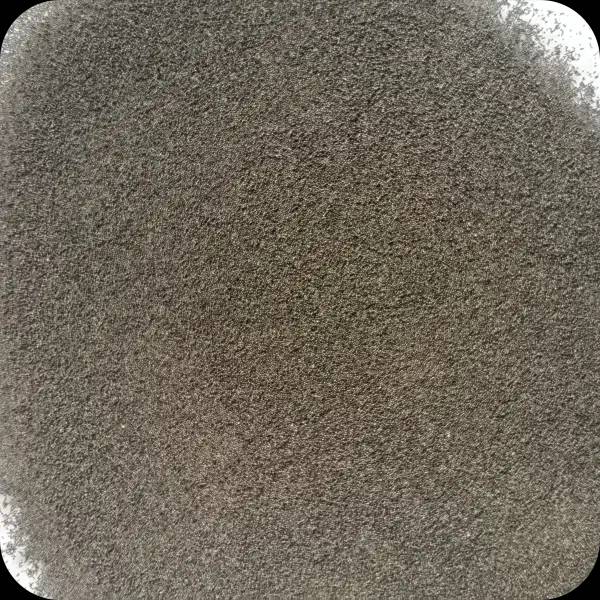

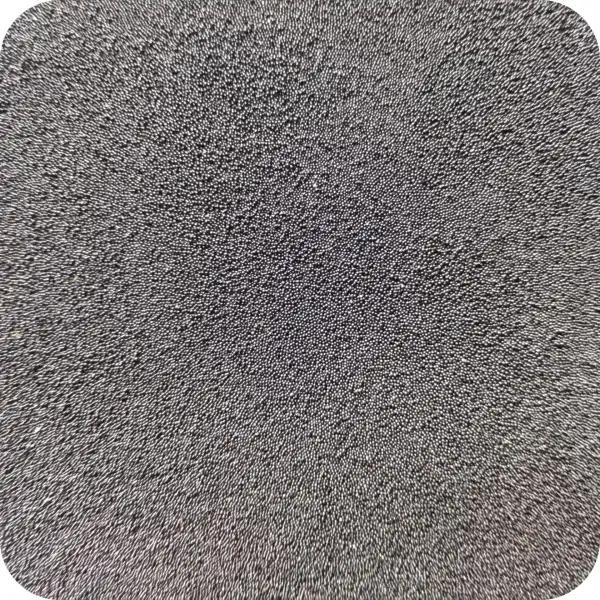

Specification Size Gallery
UFSS ultra-fine steel shot gallery — from mesh size to real product, visualize particle size differences at a glance.
