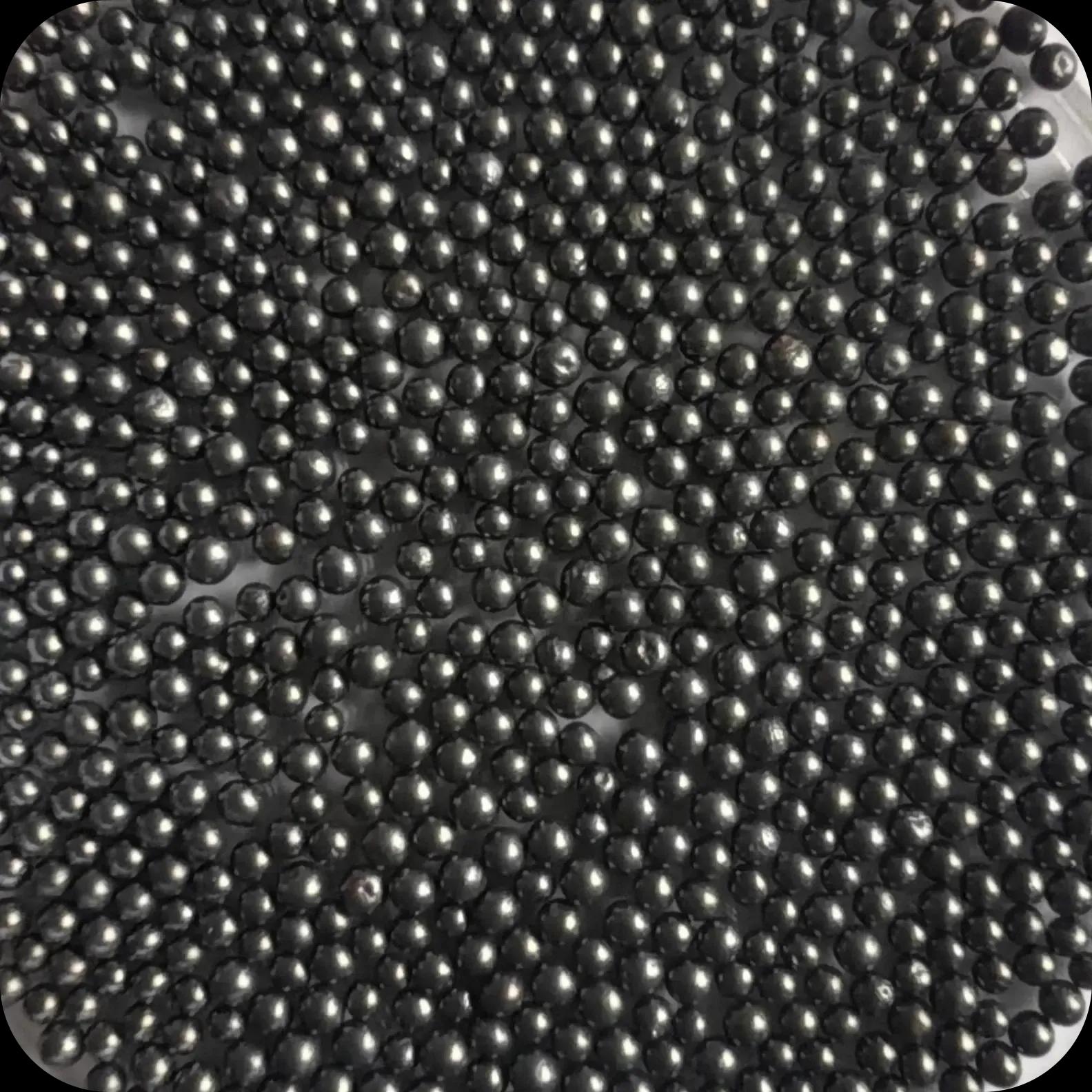

Steel Shot
Our steel shot is manufactured from high-quality scrap steel through advanced atomization technology. It features unifor
1 / 5Product Description
Steel Shot S70-S780 | High-carbon steel spherical abrasive, hardness HRC 40-50, SAE J827/ISO 11124 compliant. For shot blasting, shot peening & surface preparation. 0.2-3.0mm full range, annual capacity 50,000 tons, ISO 9001/14001/45001 certified.
Our steel shot is manufactured from high-quality scrap steel through advanced atomization technology. It features uniform hardness, precise spherical shape, and excellent durability — lasting 3-5× longer than standard cast steel shot with 30% lower dust emissions. Spherical particles allow multiple recycling cycles, delivering significantly lower total cost than non-metallic abrasives.
Applications
Core Technical Advantages
Secondary Quenching Process
After primary centrifugal quenching, we apply a second hardening cycle. This creates a denser microstructure, significantly inhibiting carbon deviation. The result: 1.3× longer service life, lower breakage rate, less dust, better elasticity and faster cleaning speed.
Microparticle Steel Shot
Microparticle Series Applications — Core features: ultra-fine particle size, gentle impact force, deep penetration into narrow gaps and micro-holes, and exceptionally smooth surface roughness. Ideal for precision shot peening, micro-deburring, thin-walled part finishing, and fine internal cavity cleaning. Not suitable for heavy rust removal or roughening. Increasingly adopted in the robotics industry in recent years.

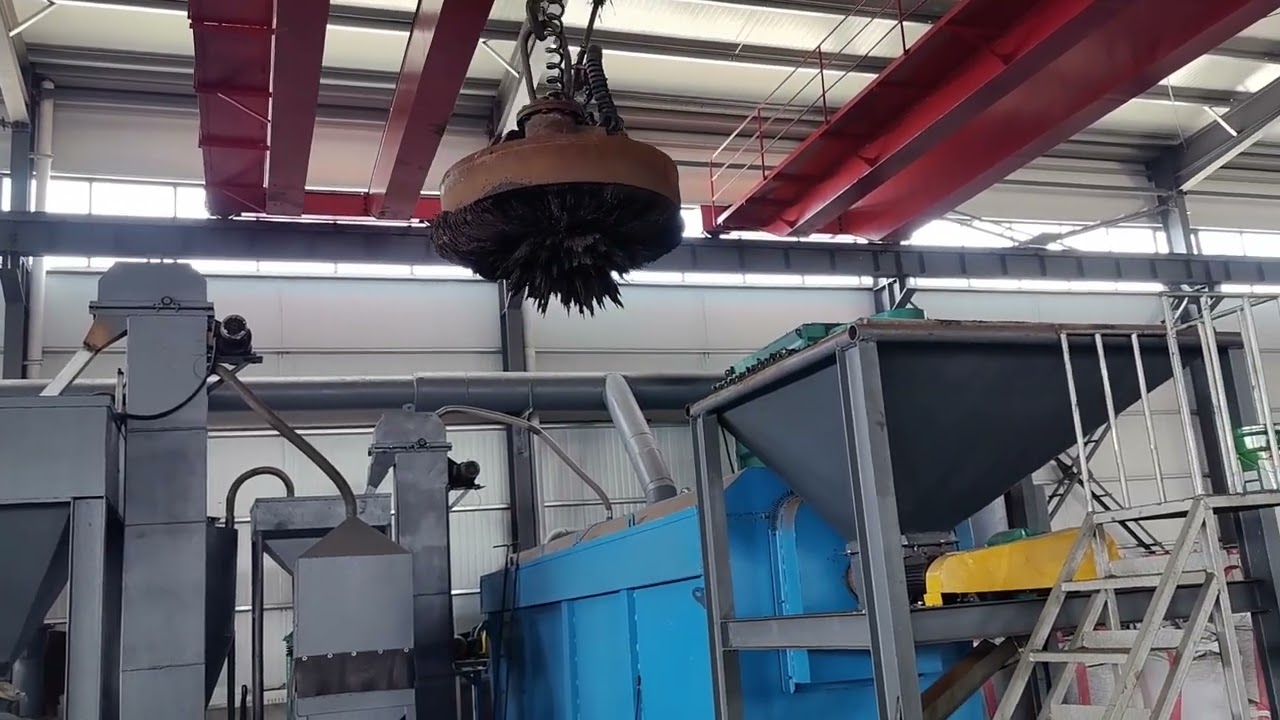

Manufacturing Process
8-step controlled production — from raw steel to finished abrasive media, every stage is engineered for consistency.
Smelting
Electric Arc Furnace
Adjust steel composition to reduce harmful sulfur and phosphorus content.
Refining
Ladle Refining
Further purify molten steel to ensure superior material quality.
Granulation
Centrifugal Casting
High-speed centrifugal forming controls shape quality and minimizes physical defects.
Selection
Defect Separation
Remove hollow or deformed particles to improve shot density and uniformity.
Quenching
Secondary Hardening
Double quenching refines grain structure, enhancing toughness and inhibiting carbon deviation.
Tempering
Precision Heat Treatment
Precise temperature and time control achieve optimal hardness uniformity across batches.
Crushing
Grit Production
Unique crushing process improves grit fullness and angularity while minimizing internal cracks.
Fine Sieve
SAE J444 Grading
Precision screening guarantees every batch meets American SAE-J444 standard.
Why Choose LuXing Metal?
Quality Assurance Laboratory
Every production batch is verified by 5 types of precision instruments before leaving the factory. Test standards aligned with ASTM E92, GB/T4340.2 and ISO 6507-2.
Hardness Tester
ASTM E92 · GB/T4340.2Friction-free spindle with automated testing. Precision micrometer system eliminates human error. Compliant with ASTM E92, GB/T4340.2 and ISO 6507-2.
Metallographic Microscope
MicrostructureIdentifies and analyzes the microstructure of metals and alloys. Validates raw material quality and verifies post-treatment microstructure integrity.
Multi-Element Analyzer
Si · Mn · P · Cr · NiDetects Si, Mn, P, Cr, Ni, Mo, Cu, Ti in cast iron, stainless steel, carbon steel and alloy steel. Fast and accurate multi-element screening.
Carbon & Sulfur Analyzer
High-Tech IntegrationOptical-mechanical-electrical-computer integrated system. Wide measuring range, strong anti-interference, accurate and reliable C/S determination.
Fatigue Testing Machine
80 m/s · 200g SampleSimulates real blasting conditions at 80 m/s centrifugal speed with 200g samples. Sieving-recycling loop measures actual shot durability under production stress.
Click to view detailed specifications for each model

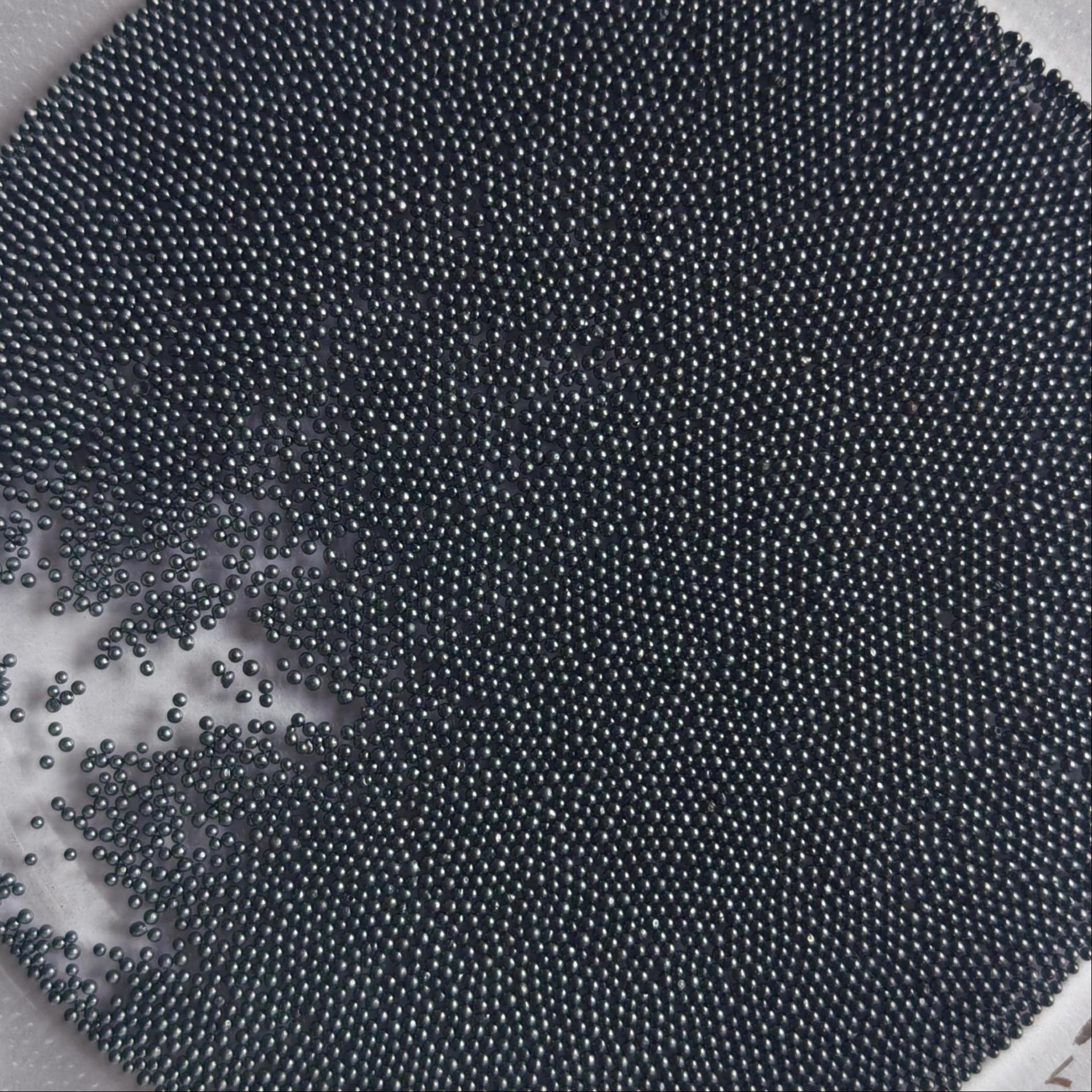

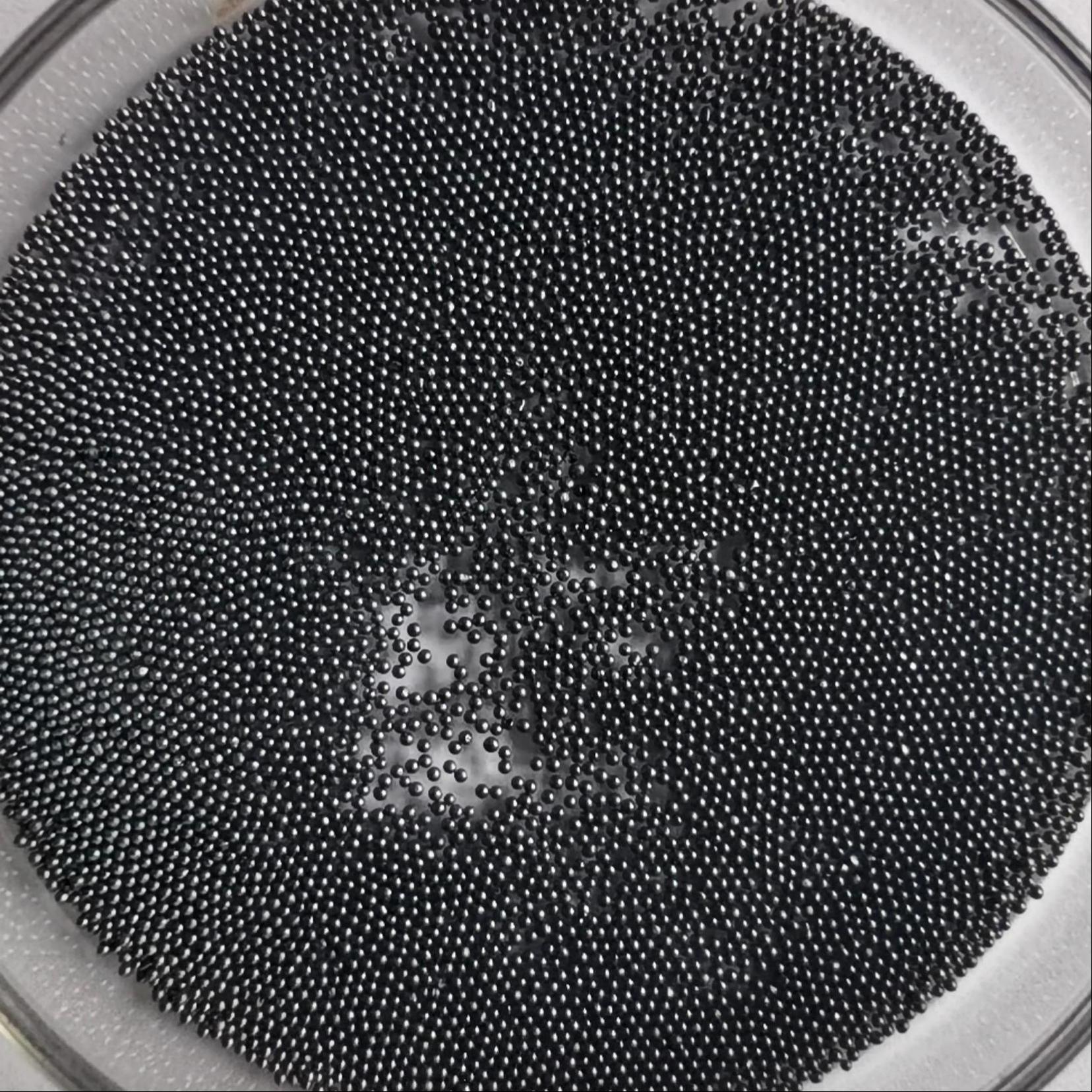

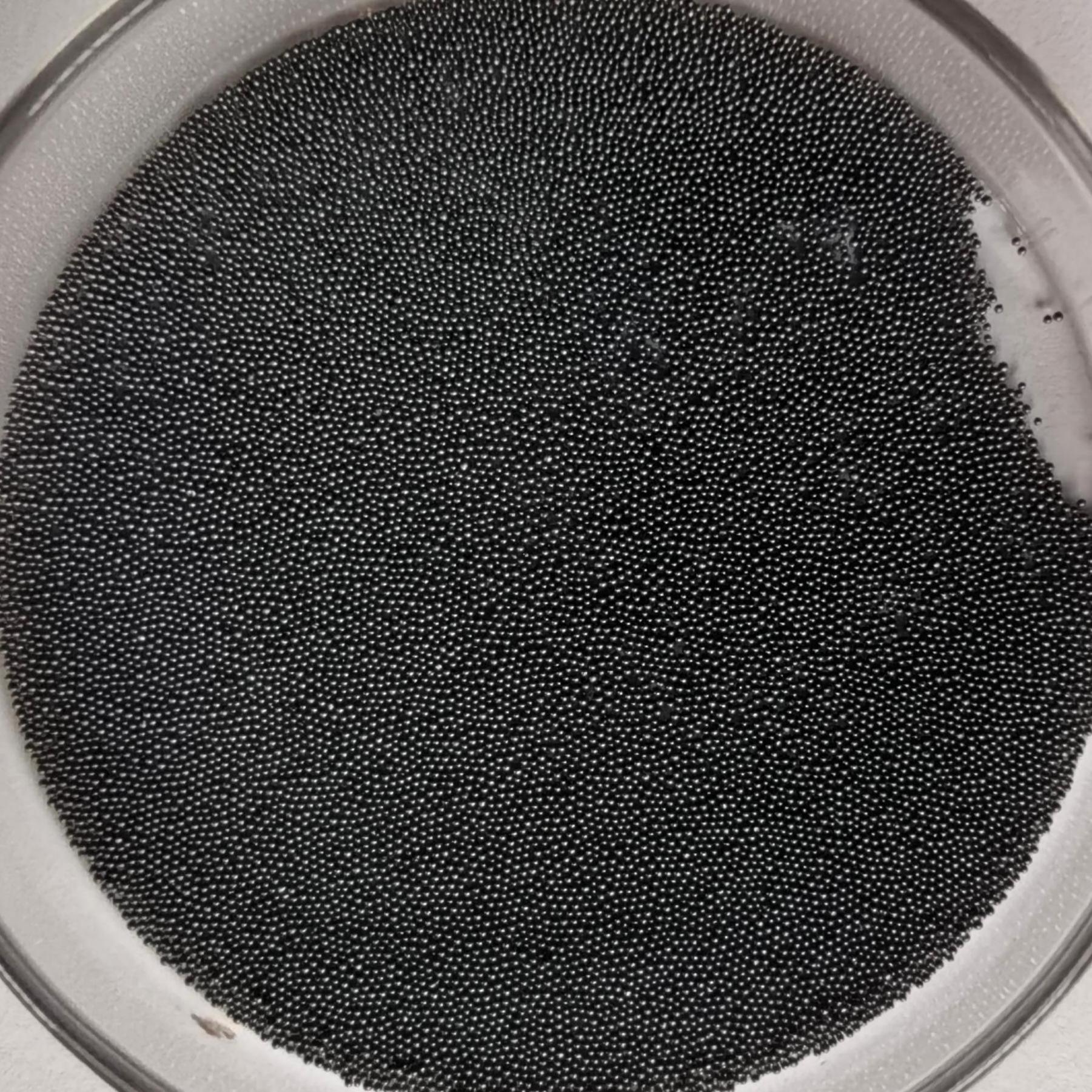

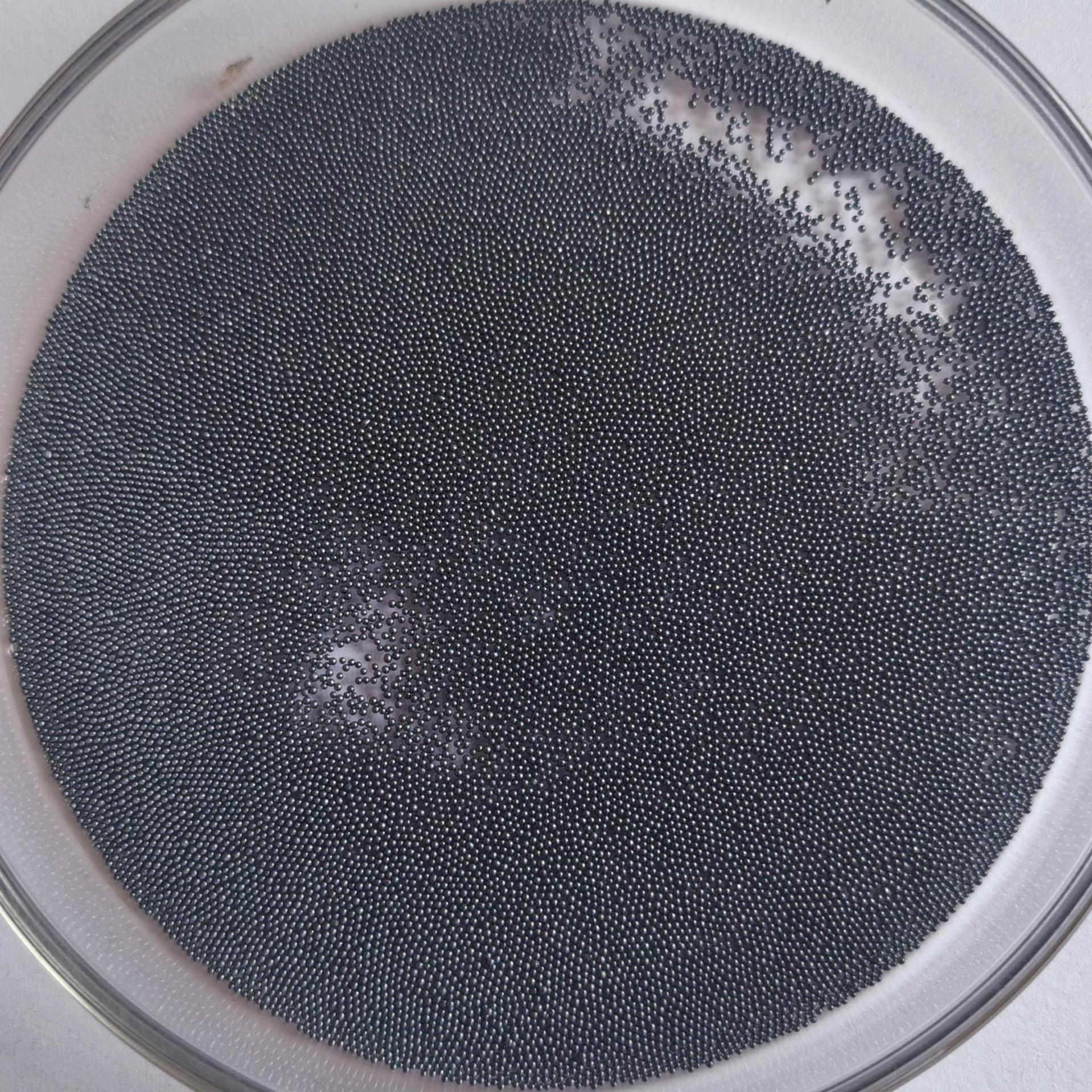

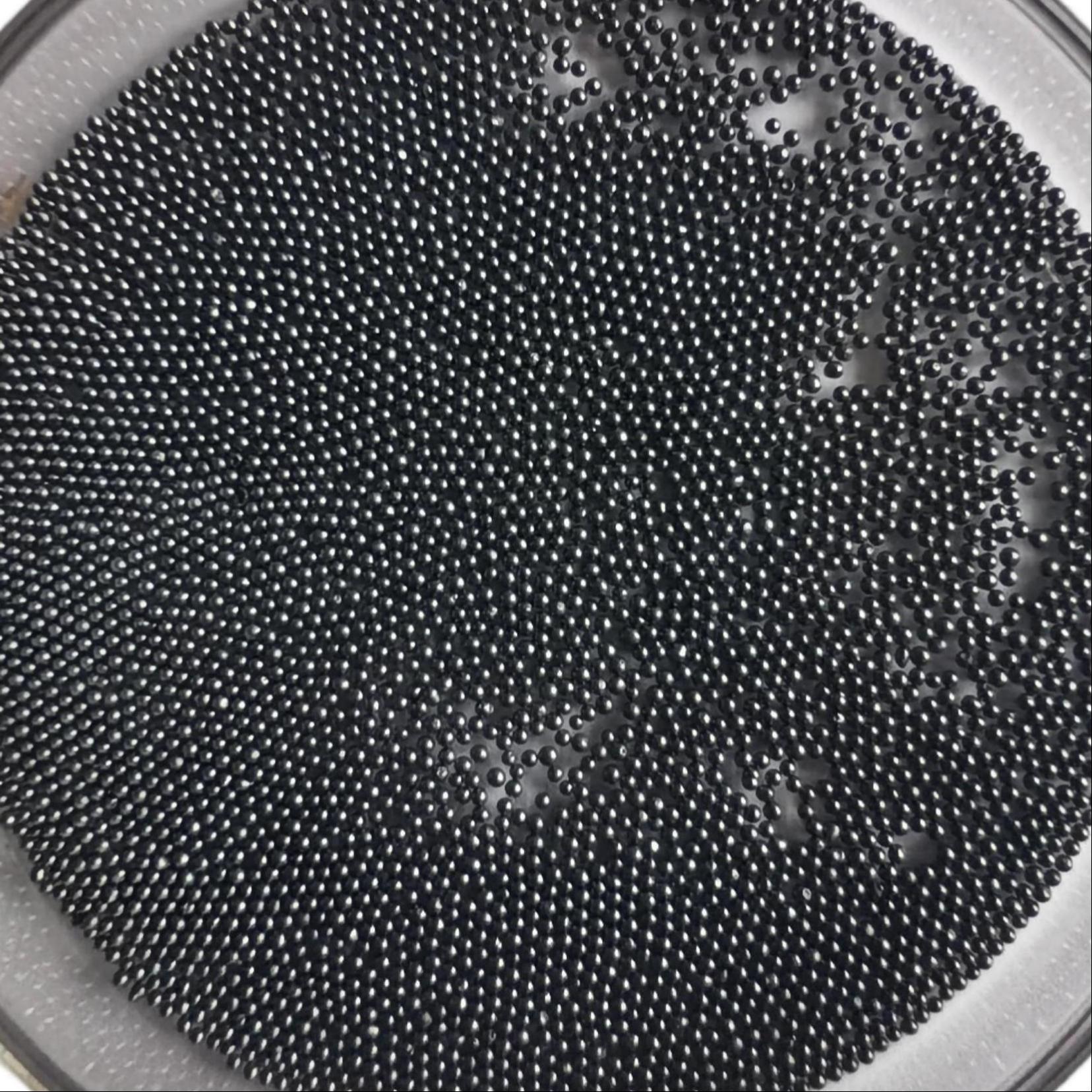

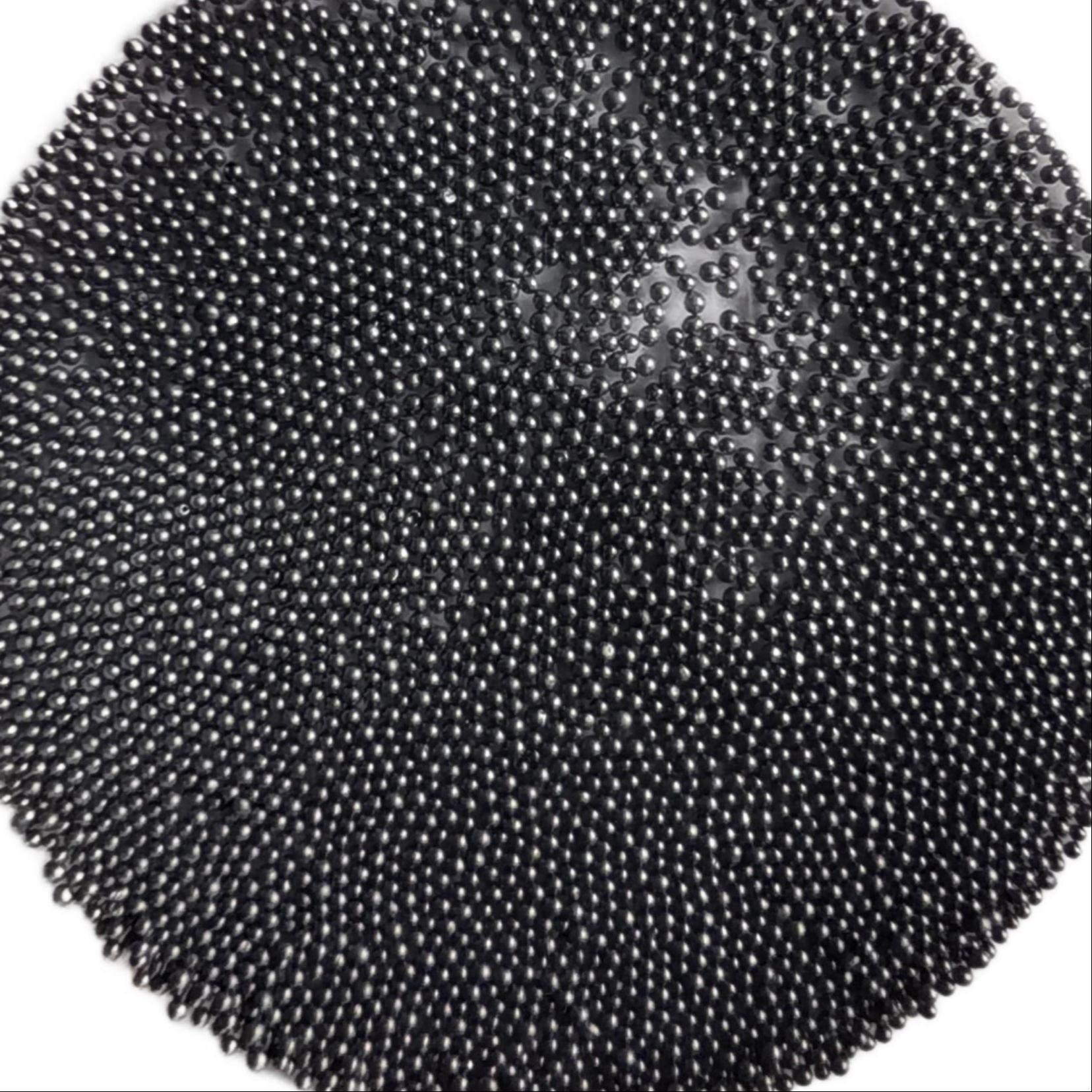

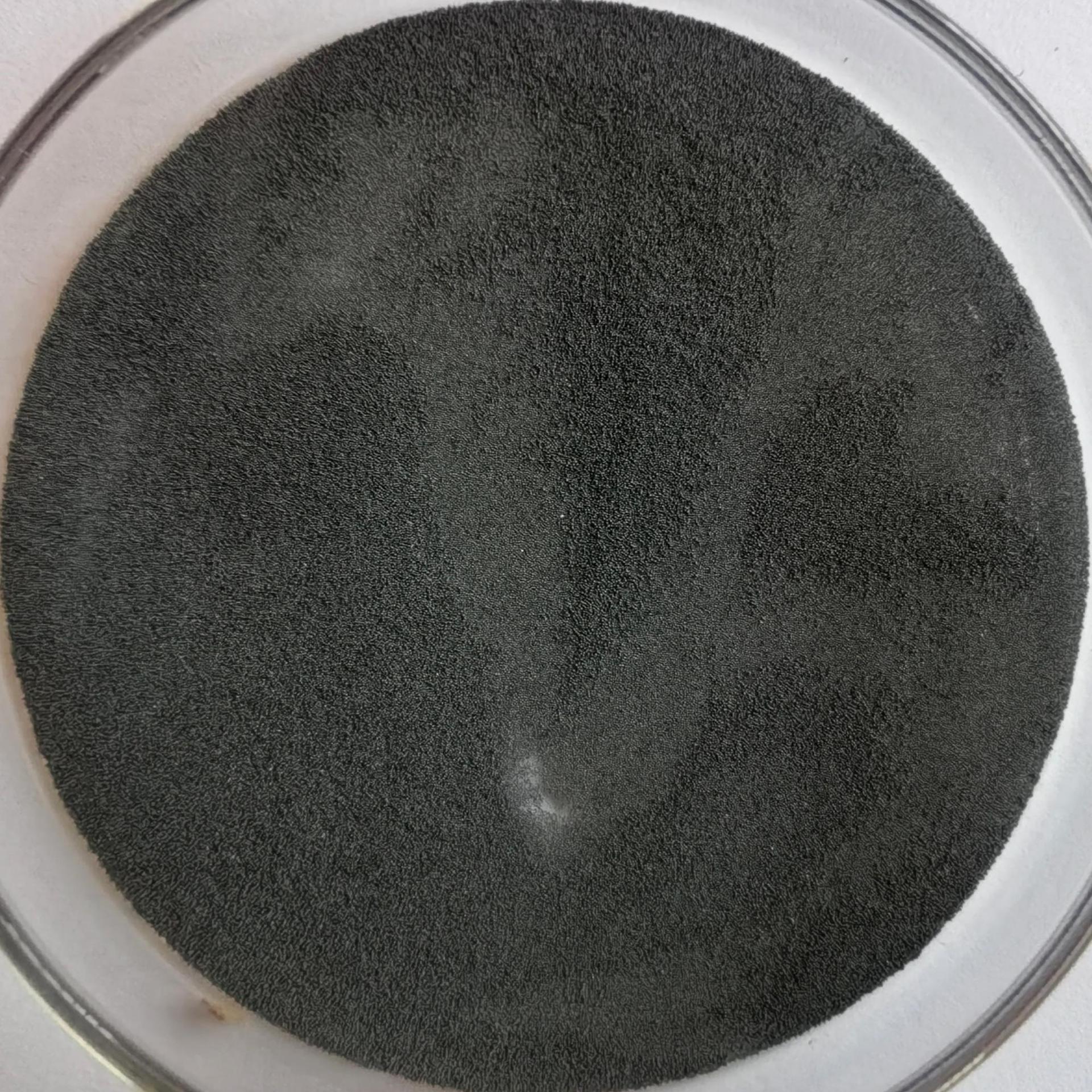

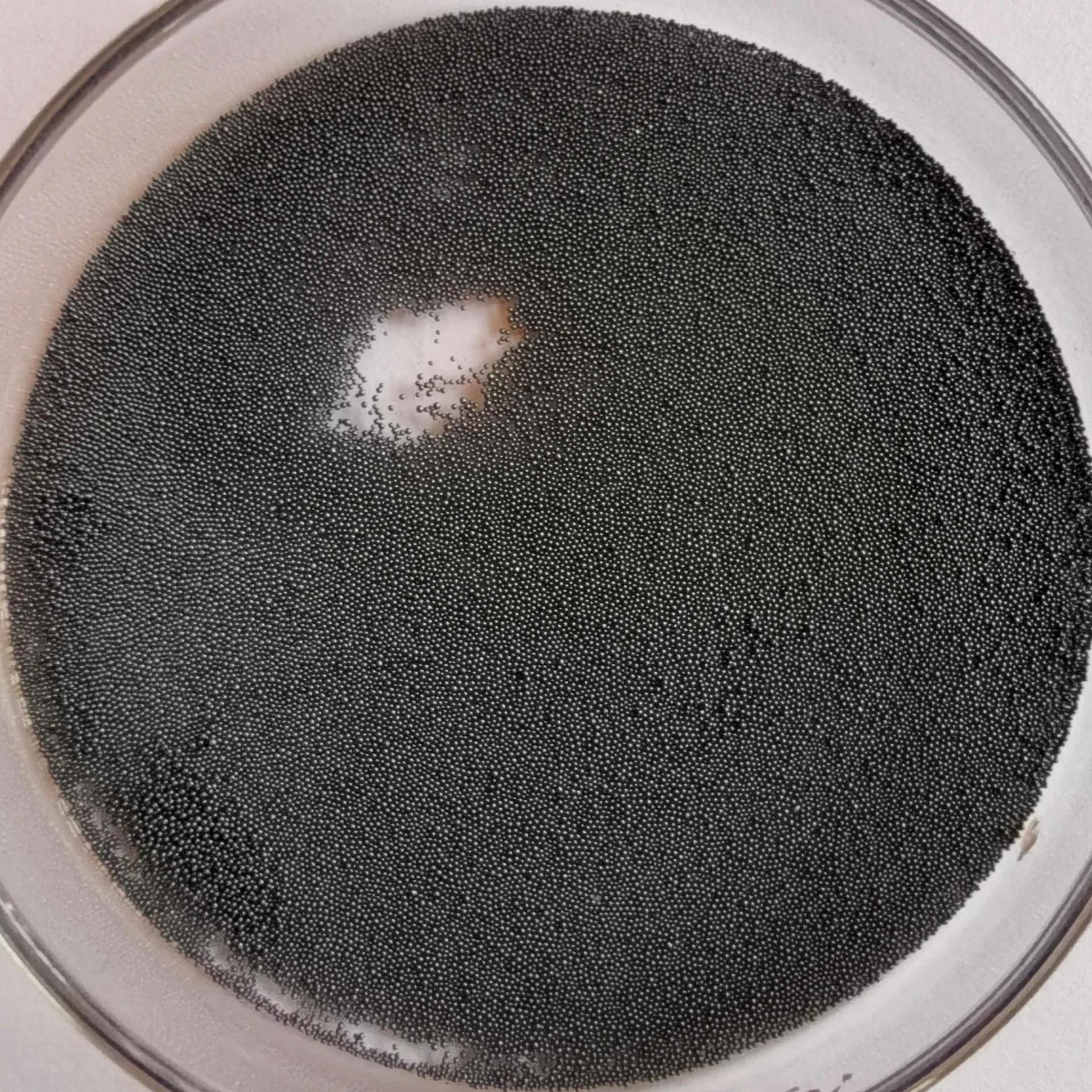

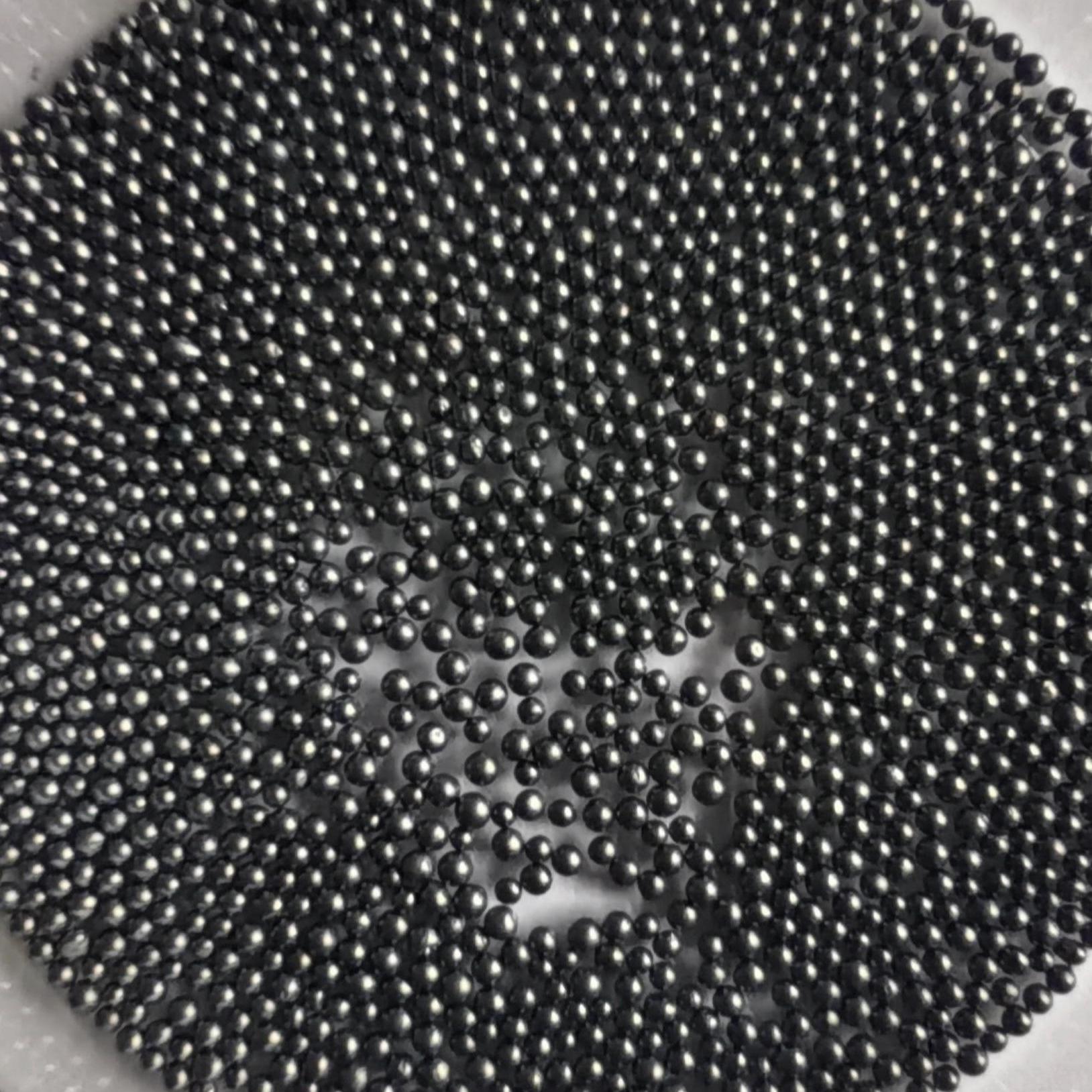

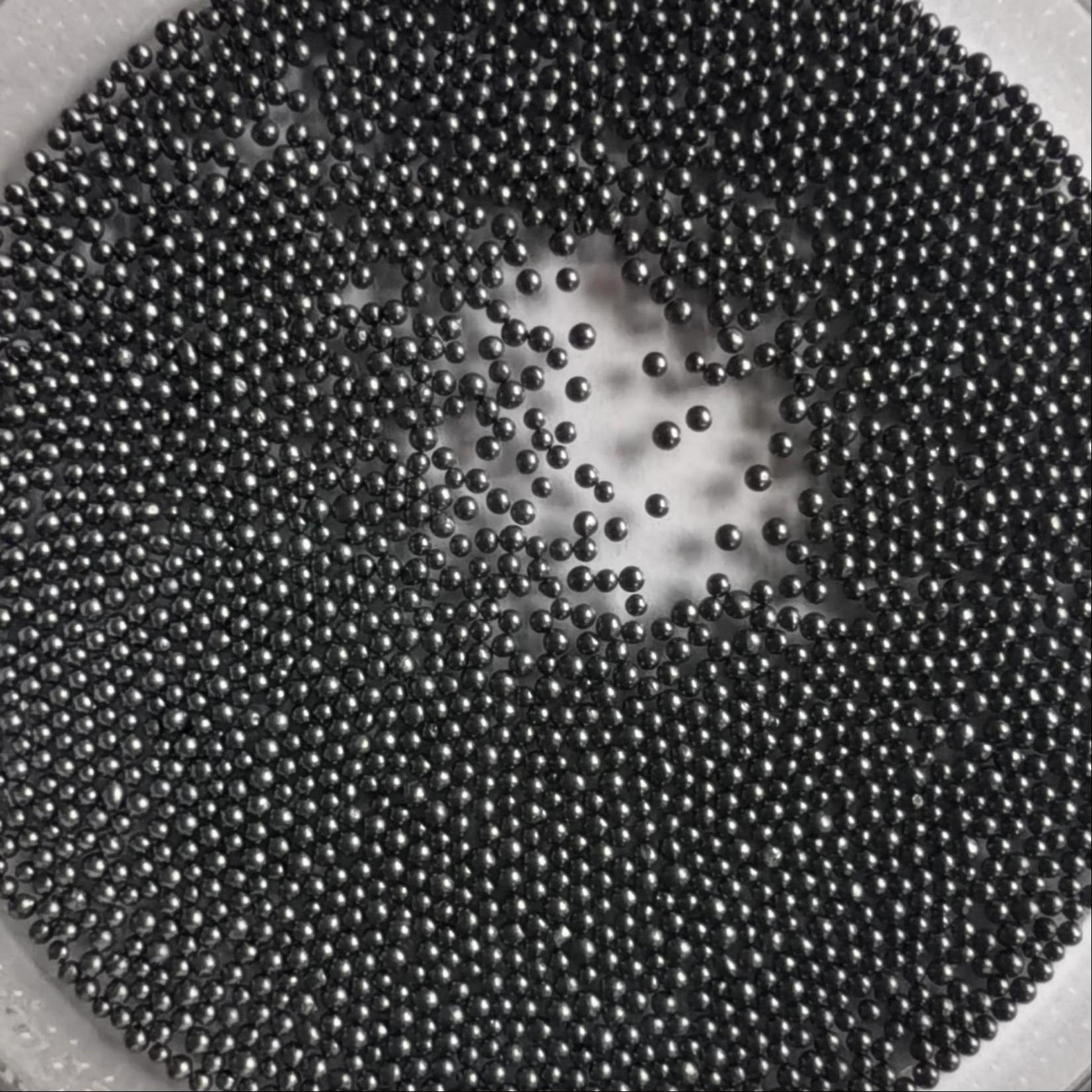

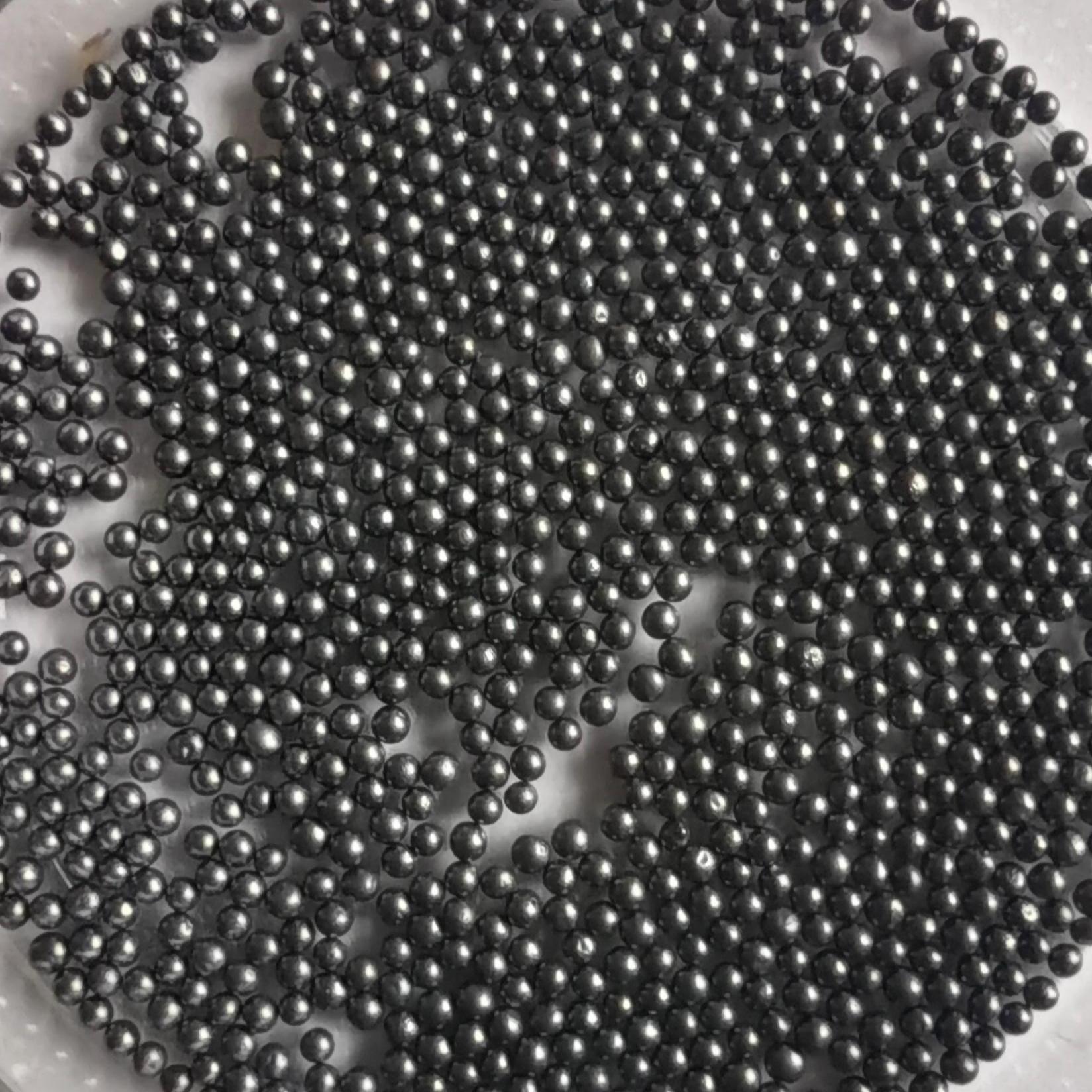

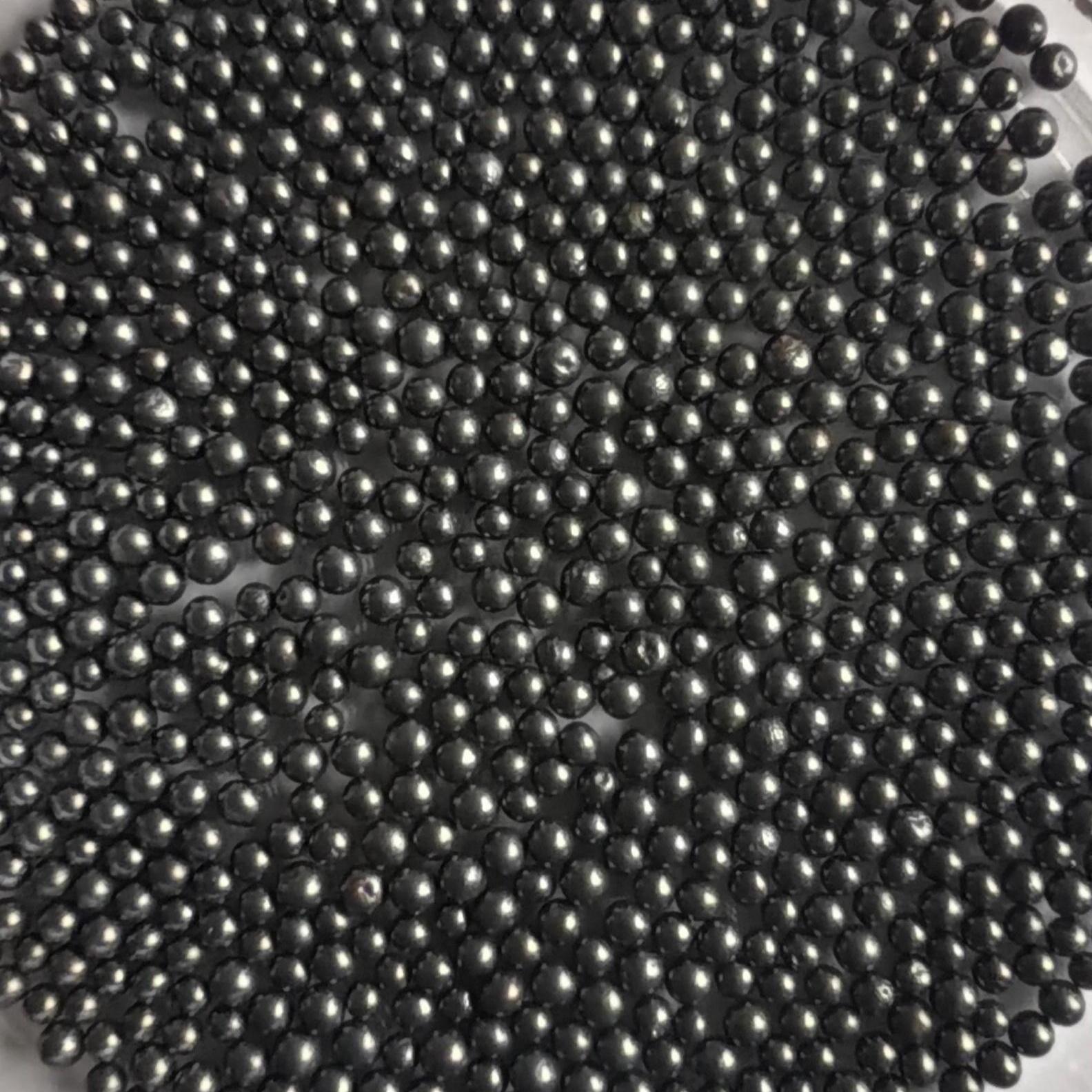

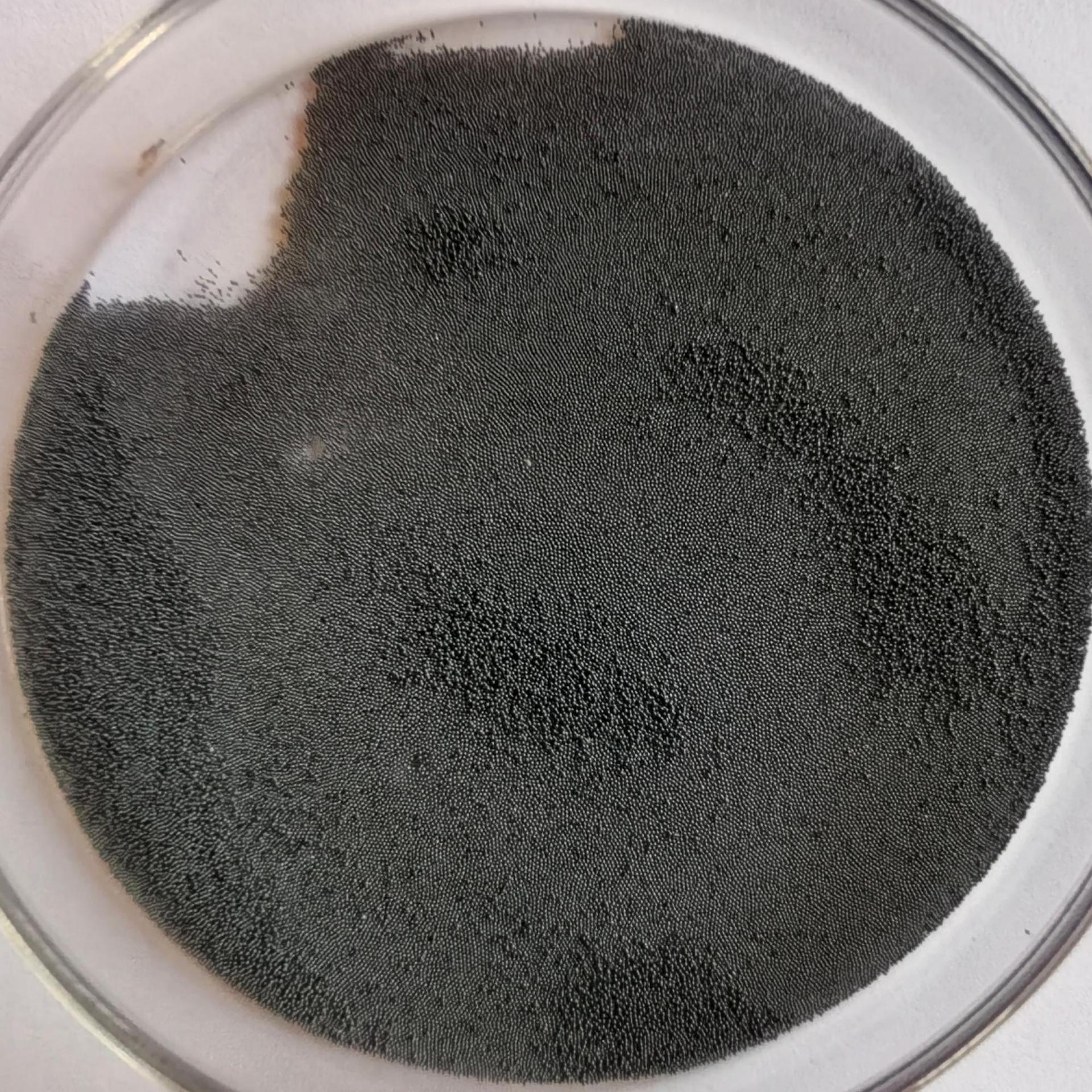

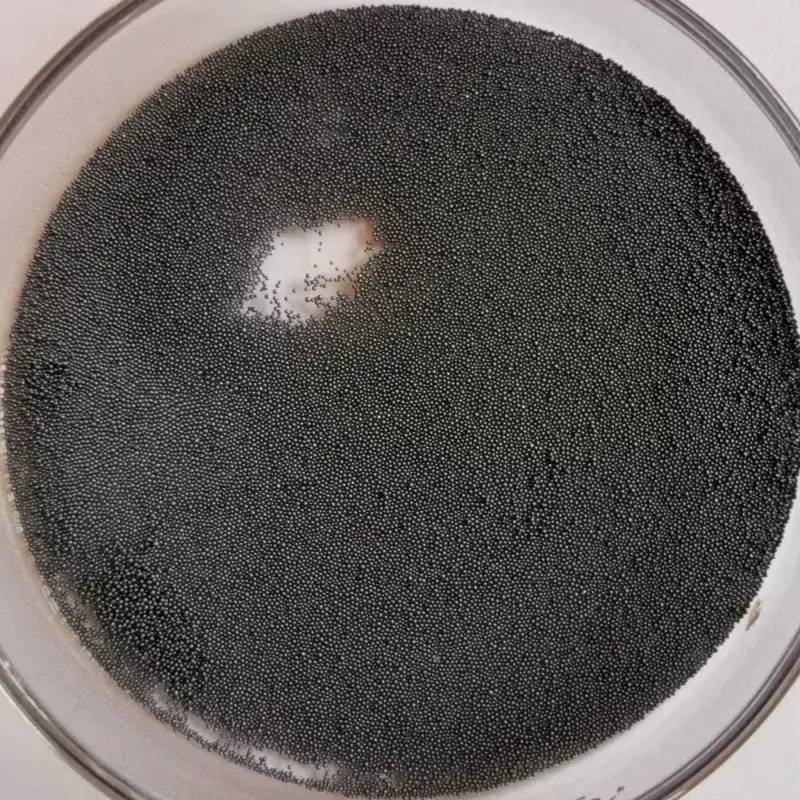

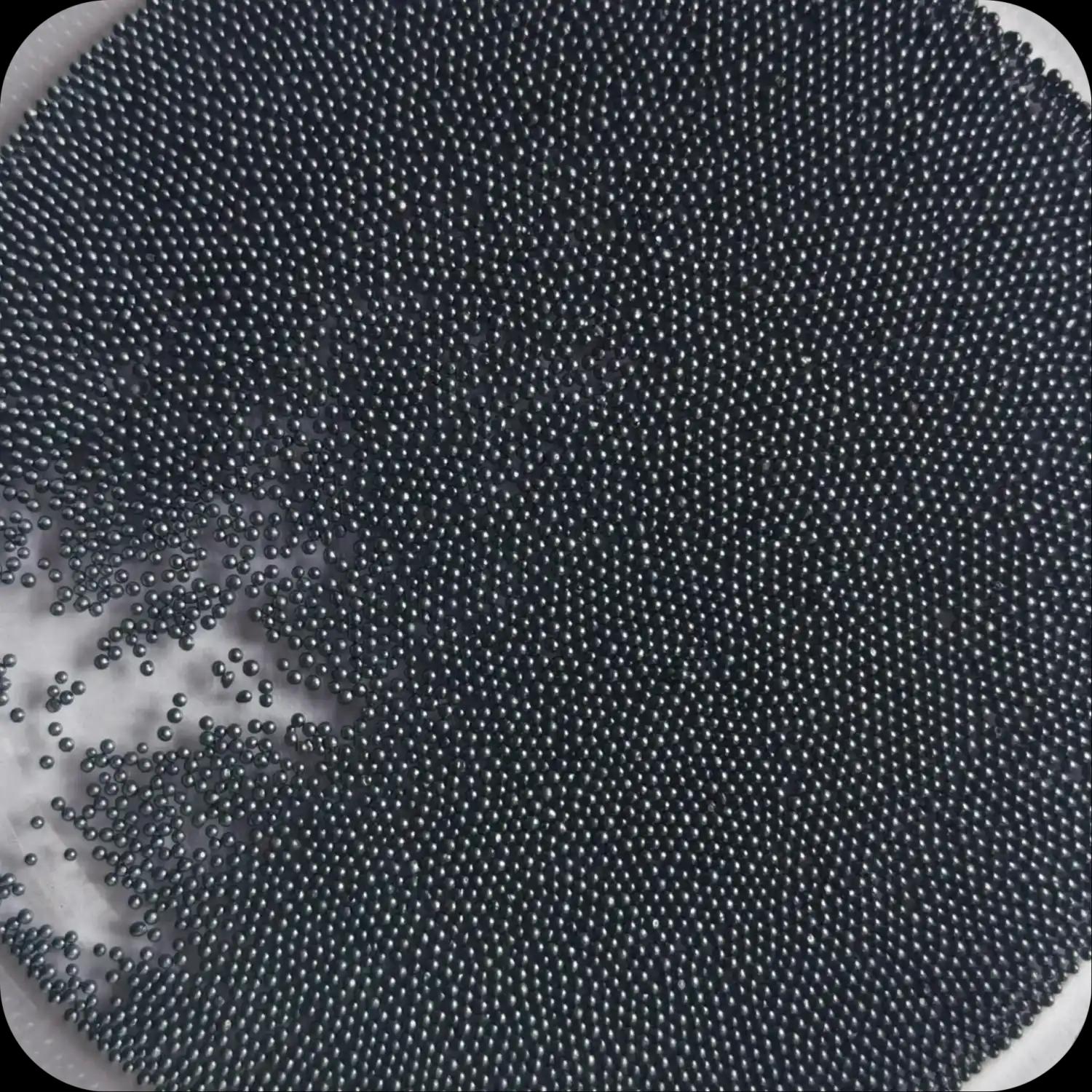

Specification Size Gallery
From S780 to S50, full series real product overview. See size differences at a glance for easier selection.
Customers Also Viewed
Popular products among customers browsing this product
Steel Grit
Steel grit is produced by crushing steel shot into angular particles. Its sharp edges provide excellent cleaning efficie
Iron Grit / Chilled Iron Grit / Iron Shot / Chilled Iron Shot
Iron grit is a cost-effective abrasive media made from high-quality cast iron, produced through a crushing process that
Ultra Fine Steel Shot
Ultra Fine Steel Shot is a super-fine particle blasting medium developed by LuXing Metal for precision surface treatment
Aviation Steel Shot
Aviation Steel Shot is a high-performance shot peening medium manufactured in compliance with AMS 2431 aerospace materia
Specifications
Interested in this product?
Get competitive factory price within 24 hours. No commitment required.
Get Free QuoteFrequently Asked Questions
What is steel shot and what is it used for?›
Steel shot is a spherical metallic abrasive manufactured through atomization. It's primarily used for shot blasting, shot peening, and surface preparation. It removes scale, rust, and old coatings while enhancing metal surface fatigue strength.
→ View Steel Shot S70-S780 product specs & selection guide
What is the difference between steel shot and steel grit?›
Steel shot is spherical, ideal for precision cleaning and shot peening. Steel grit is angular with stronger cutting force, suitable for aggressive rust removal and surface profiling. Choose based on your workpiece requirements.
Steel Shot · Steel Grit · Deep-dive comparison
