A second hardening cycle after primary centrifugal quenching delivers a denser microstructure, more uniform carbon distribution, and 30%+ improvement in wear resistance and fatigue life — making our steel shot & grit a benchmark above industry standards.
The martensite formed after primary quenching exhibits significant grain coarsening and internal stress concentration. Secondary quenching reheats the material to austenitizing temperature and rapidly cools, triggering a second γ→α' phase transformation. New nucleation sites enable dramatic grain refinement (ASTM 5-7 → 9-11).
| Dimension | Single Quench (Industry Standard) | Secondary Quench (LuXing Patent) |
|---|---|---|
| Grain Size (ASTM) | 5 – 7 (~40μm) | 9 – 11 (~12μm) |
| Microstructure | Lath Martensite + Retained Austenite | Fine Tempered Martensite, RA < 3% |
| Carbon Distribution | Local segregation, high deviation | Uniform dispersion, deviation < 5% |
| Hardness Uniformity | ±3 HRC variation | ±1 HRC variation |
| Impact Toughness (J/cm²) | 8 – 12 | 16 – 22 |
| Fatigue Life | Baseline (1.0×) | 1.3× |
After primary quenching, extensive dislocation tangles and micro-cracks remain between martensite laths. When reheated above Ac₁, preferential nucleation occurs at prior austenite grain boundaries and non-metallic inclusions — the newly formed austenite grains are far smaller than the original ones.
During the second rapid cooling, these tiny austenite grains transform into fine lath martensite. Two thermal cycles equal two grain-splitting events — each phase transformation breaks up coarse structures, reducing grain size from ~40μm to ~12μm (ASTM 9-11), dramatically increasing specific surface area.
During centrifugal casting and forming of steel shot/grit, carbon atoms tend to segregate at grain boundaries and interdendritic regions due to uneven cooling rates. While primary quenching partially dissolves carbides, micro-scale carbon heterogeneity persists.
Secondary heating to austenitizing temperature with proper holding time provides sufficient diffusion driving force for carbon atoms. After complete carbide dissolution, carbon atoms achieve uniform distribution through interstitial diffusion within the γ-Fe lattice. Subsequent rapid quenching ‘freezes’ this uniform distribution in the martensite supersaturated solid solution, eliminating brittle phase precipitation and early fatigue cracking caused by localized high carbon concentration.
Single Quenching
Large carbon fluctuation, localized segregation
Secondary Quenching
Uniform carbon distribution, fluctuation < 5%
Precision tempering following secondary quenching achieves stress relief and dispersed carbide precipitation in the martensitic matrix.
850-880°C → Water
Molten steel formed into shot then water-quenched directly, forming lath martensite framework, establishing baseline hardness
820-860°C → Soak
Reheating causes martensite reverse transformation; new austenite nucleates at defect sites, splitting grains
820°C → Water/Oil
Rapid cooling completes second martensitic transformation, producing even finer lath martensite
180-250°C → Control
Low-temperature tempering precipitates dispersed carbides, relieves quenching stress, achieves superior tempered martensite
Carbon supersaturated in α-Fe body-centered tetragonal lattice. High dislocation density yields high hardness coupled with brittleness. Retained austenite films exist between martensite laths.
Precision tempering causes supersaturated carbon to precipitate as dispersed ε-carbides, reducing lattice tetragonality and controllably lowering dislocation density, achieving optimal strength-toughness balance.
Refined grain structure grants steel shot higher impact toughness and fatigue resistance. Real-world comparative blasting tests confirm secondary-quenched shot withstands 30%+ additional cycles before reaching fracture limits under identical conditions.
Uniform carbon distribution and high toughness mean significantly reduced surface micro-spalling under repeated impact. Lower fine dust improves workshop visibility, protects operator health, and reduces dust collection equipment load.
The superior toughness of tempered martensite prevents brittle fracture of shot during high-speed impact. Low breakage means lower media consumption, reduced downtime for material changeover, and 20%+ total cost savings.
Dense tempered martensite provides higher elastic modulus and better shape retention. More efficient energy transfer during workpiece impact translates into faster processing speeds and lower power consumption.
Industry benchmarks show abrasive media procurement accounts for only 15%–20% of total shot blasting ownership cost (TCO). Secondary quenching systematically reduces the remaining 80%–85% of hidden operational costs through multiple core technical improvements.
Labor · Energy · Maint.
Downtime · Inventory
30% longer life → lower purchase volume & inventory capital
Extended change intervals → fewer non-productive operator hours
15% faster cleaning → less energy per ton of workpieces
40% less dust → longer filter cartridge & impeller liner life
Fewer media changes → less unplanned stoppage, higher OEE
The estimates below are based on average shot blasting operational data from the Chinese manufacturing sector. Actual savings vary by line scale and automation level. Contact Luxing's technical team for a precise calculation tailored to your production line.
3 fewer changeovers per year
Includes labor, media loading, parameter recalibration, brief downtime
RMB 3,000–5,000 each (~US$410–680)
1–2 fewer filter replacements annually
Combined: changeover labor + downtime output loss + consumables + inventory capital reduction
RMB 60,000–120,000/year (~US$8,200–16,400)
The ultimate value of technical excellence lies not only in superior parameters, but in the business trust, compliance assurance, and sustainability credentials that consistency delivers — dimensions increasingly critical to procurement decision-makers.
Uniform carbon micro-distribution and the inherent stability of tempered martensite keep hardness variation within a narrow band across heats. Blasting parameters require minimal adjustment, QC data remains stable and traceable, and SPC control charts stay in control — meaning lower labor costs for parameter tuning and reduced scrap/rework risk.
Stable, uniform blasting media is the bedrock of any quality management system. For AS9100D-certified aerospace suppliers or ISO 9001 manufacturers, secondary-quenched shot's batch consistency provides auditable quality records, reliable process capability indices (Cpk), and robust evidence that requires no additional explanation during annual audits.
A 40% dust reduction is more than an efficiency number — it is critical assurance for meeting TWA (Time-Weighted Average) concentration limits. Compliant with OSHA 1910.1000 and equivalent international standards for respirable particulates, systematically reducing occupational disease risk and compliance penalty exposure.
30% longer service life means approximately 30% less total media consumption. Based on the EAF steelmaking carbon emission factor (~1.8 tCO₂ per tonne of crude steel), every ton of shot not produced avoids roughly 1.8 t of CO₂ emissions. For companies exporting to Europe and North America, this is a directly quantifiable Scope 3 emission reduction contribution for ESG reporting.
Bridge steel box girders, ship blocks, wind turbine towers — extended service life enables single-batch operations without mid-job media changes.
Gears, springs, connecting rods — low breakage rate ensures batch consistency in shot peening intensity and coverage.
Aircraft aluminum & titanium alloy structural component peen forming — stable, uniform media properties meet stringent AMS standards.
Engine blocks, pump bodies with complex internal cavities — high-toughness shot reaches blind corners without fracturing.
Oil & gas pipeline descaling and surface profiling — low dust significantly improves working conditions inside long pipes.
Steel buildings, power transmission towers — uniform blasting results provide optimal surface profile for coating adhesion.
Stone surface blasting for antique/bush-hammered finishes — low media consumption, consistent results, high productivity.
Mass-scale descaling of bolts, nuts and fasteners after heat treatment — extended media life reduces tonnage media cost by 20%+.

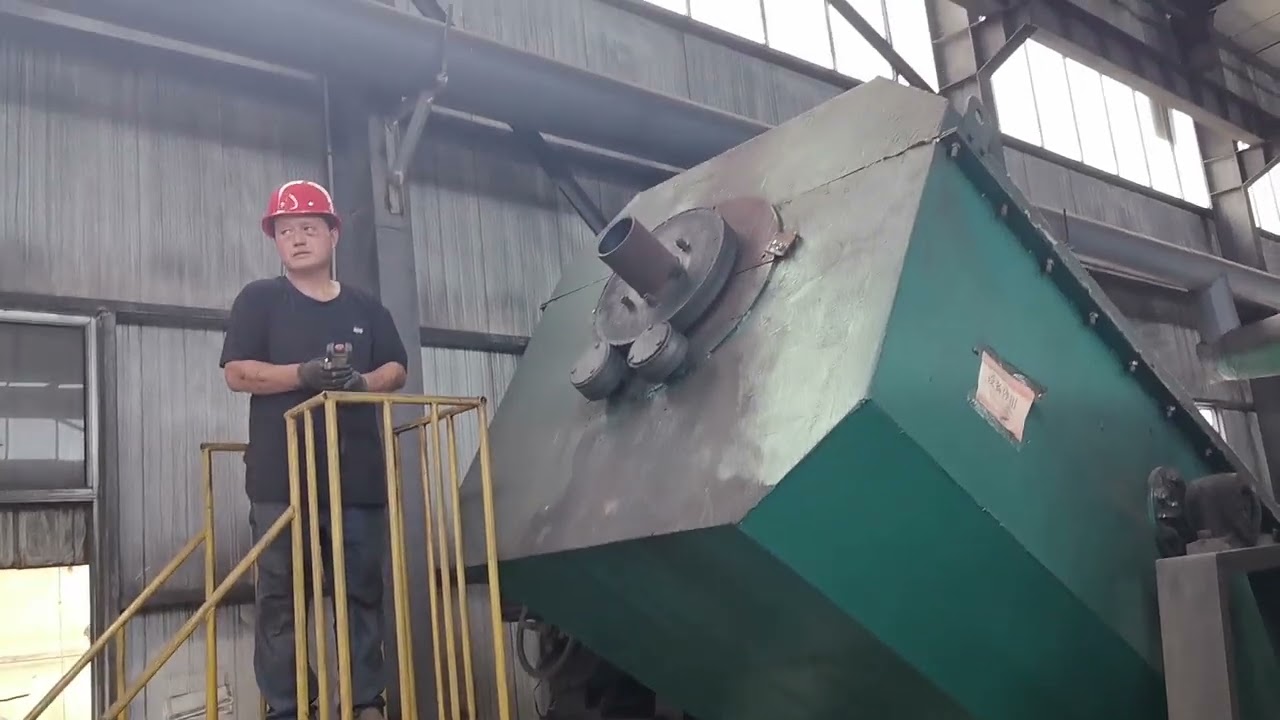

A behind-the-scenes look at our tempering line — see how secondary quenching transforms the microstructure of every abrasive particle.
Request free steel shot/grit samples and verify the performance of secondary-quenched products on your production line. Technical proposals and quotations within 24 hours.
