Stainless Steel Shot | AISI 410 (hardenable, 35-45 HRC) / AISI 430 (corrosion-resistant) spherical abrasive, AMS 2431/MI

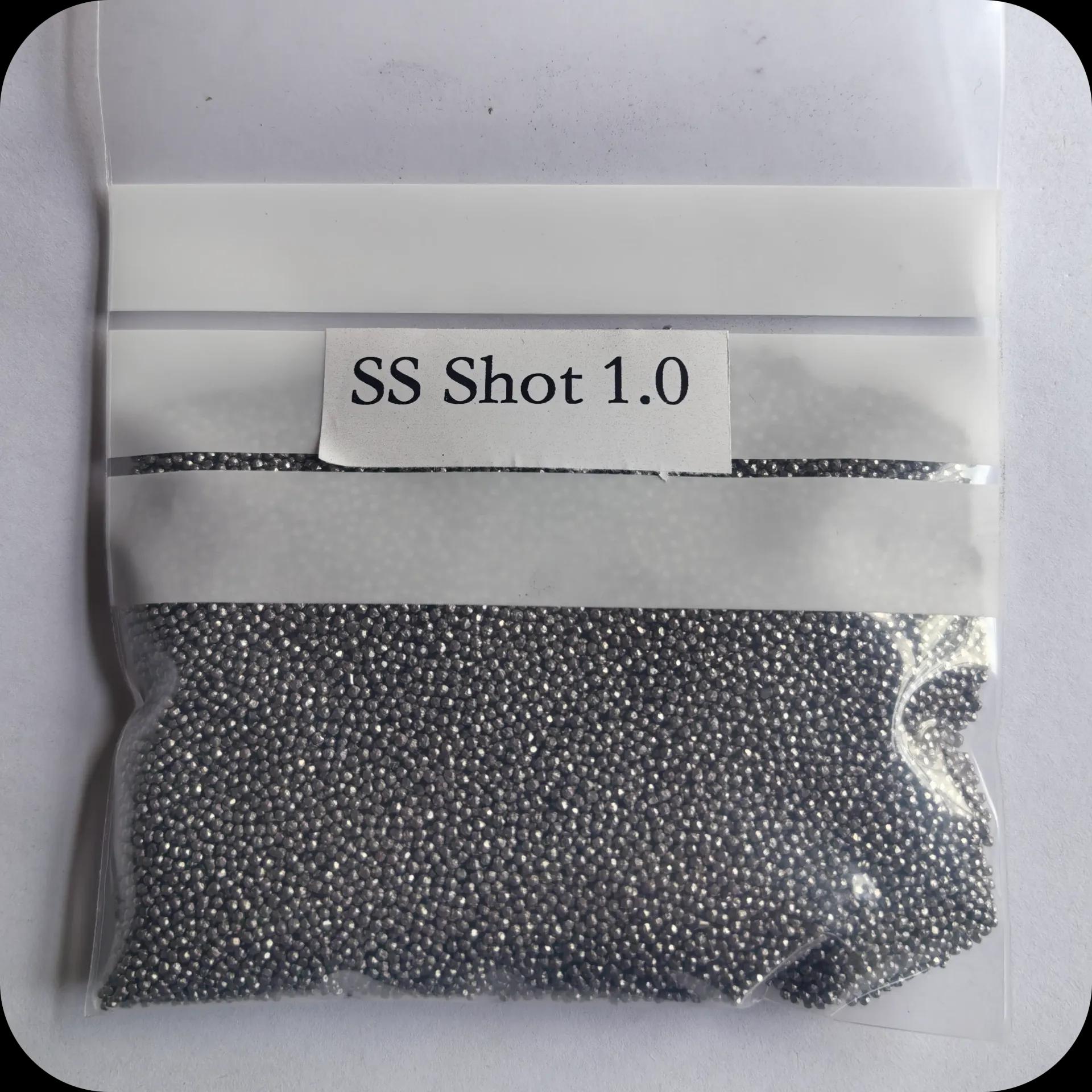

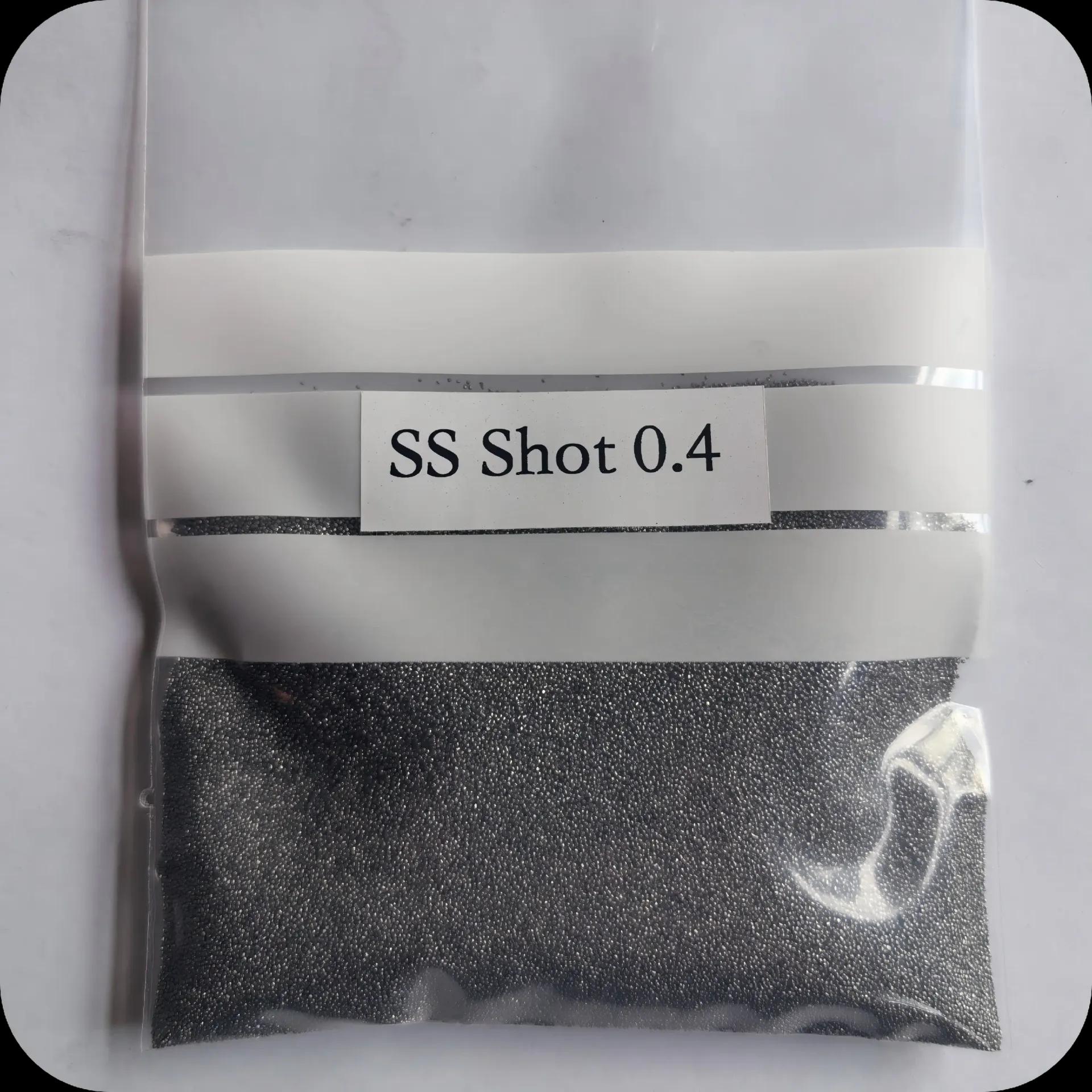

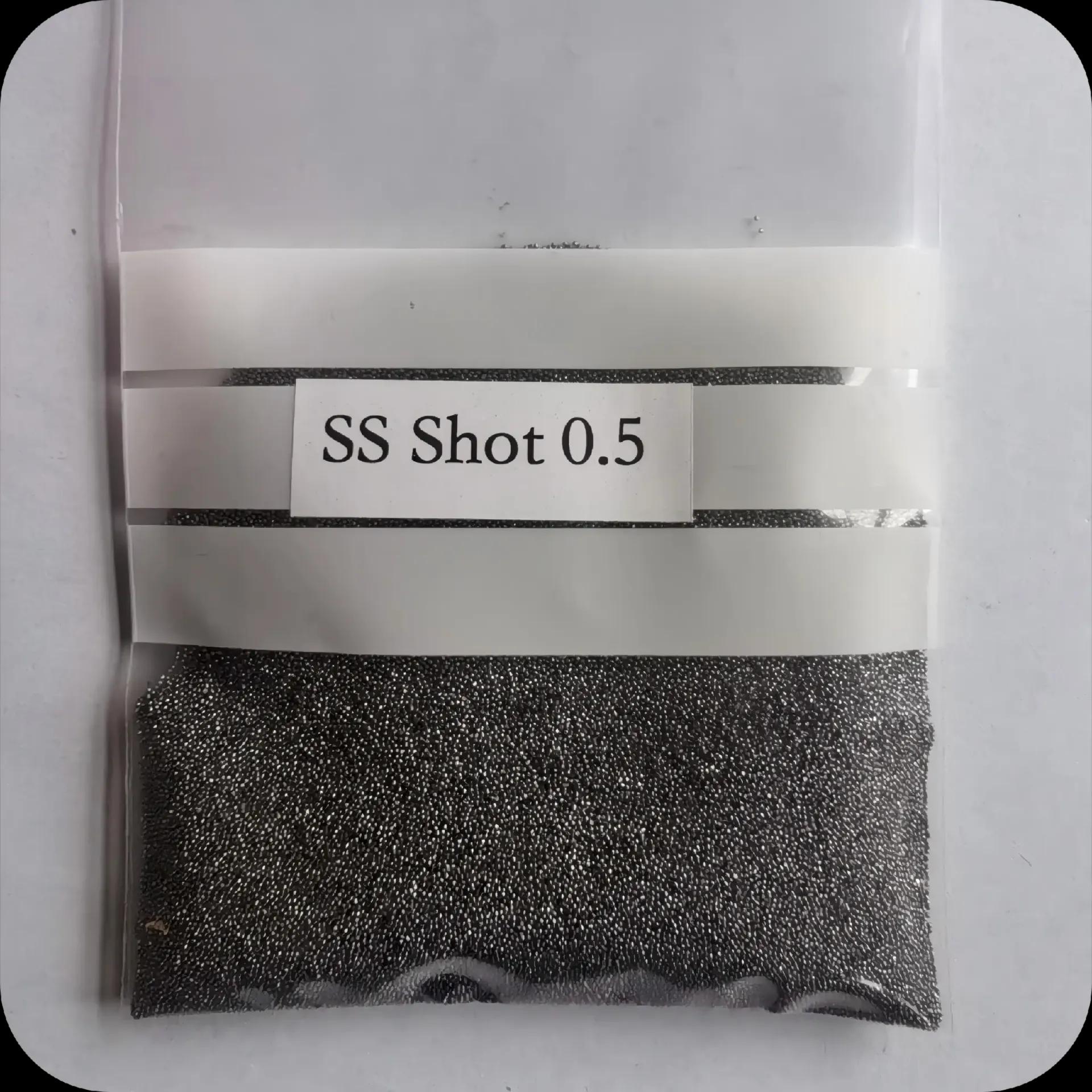

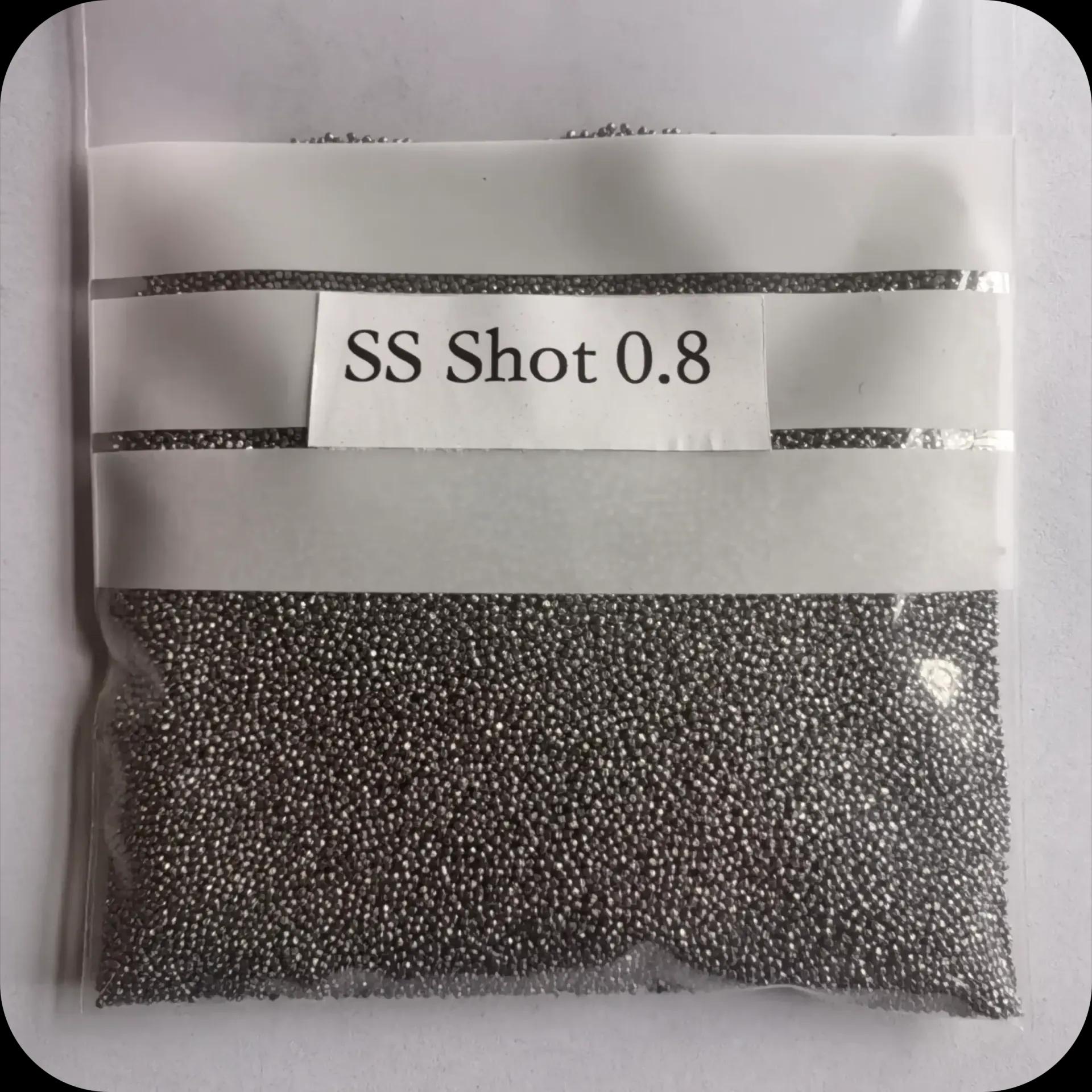

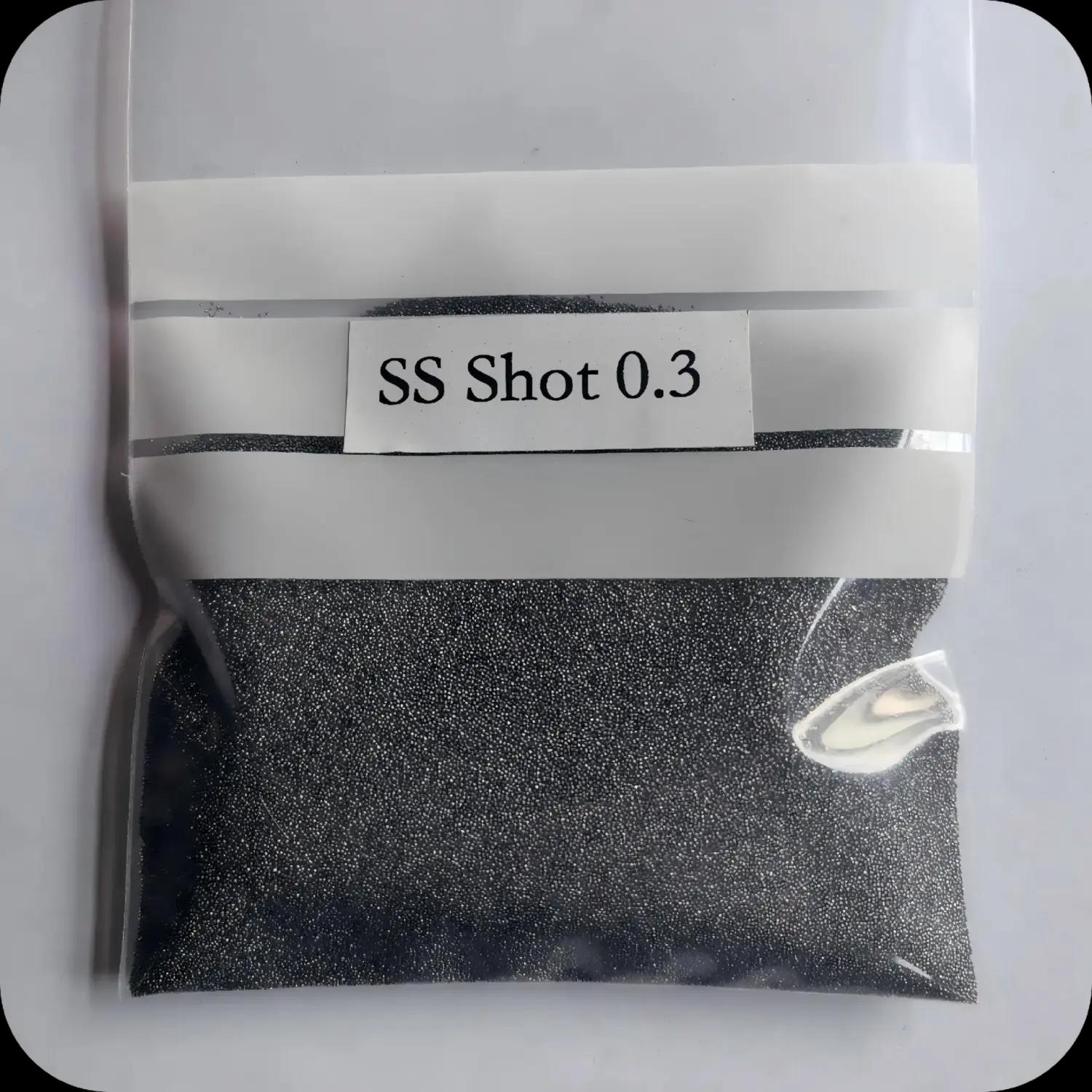

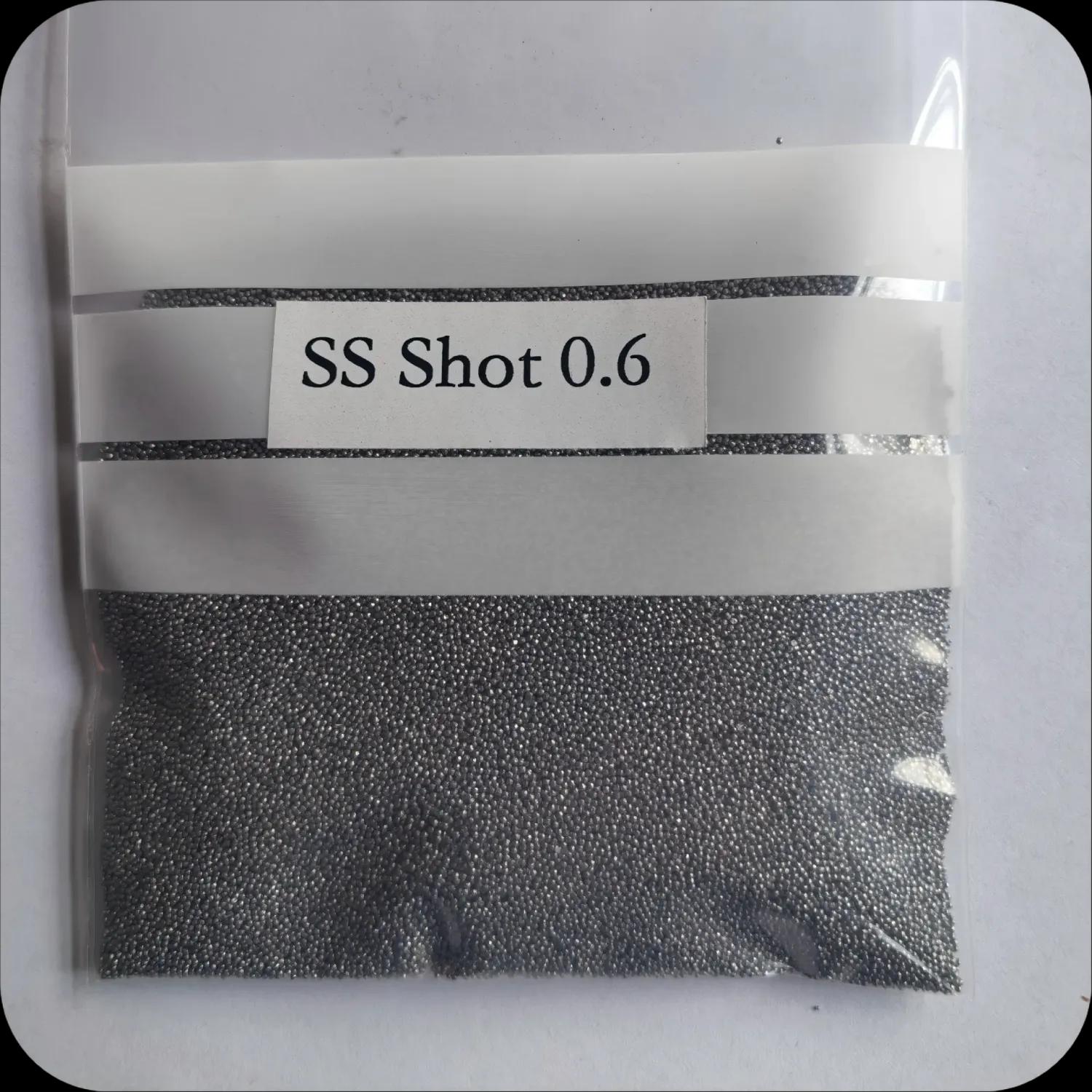

1 / 7Stainless Steel Shot | AISI 410 (hardenable, 35-45 HRC) / AISI 430 (corrosion-resistant) spherical abrasive, AMS 2431/MIL-S-13165 compliant. Zero carbon contamination risk. For aerospace, medical equipment & food processing. 0.2-2.0mm, annual capacity 60,000 tons.
Manufactured from high-quality stainless steel, our stainless shot is ideal for applications where carbon contamination must be avoided. AISI 410 can be heat-treated to 35-45 HRC for shot peening and surface cleaning; AISI 430 ferritic stainless offers superior corrosion resistance for applications where hardness is less critical. Perfect for aerospace, medical equipment, and food processing industries. The stainless steel composition ensures zero iron residue on treated surfaces, eliminating the need for additional passivation steps.
After primary centrifugal quenching, we apply a second hardening cycle. This creates a denser microstructure, significantly inhibiting carbon deviation. The result: 1.3× longer service life, lower breakage rate, less dust, better elasticity and faster cleaning speed.
8-step controlled production — from raw steel to finished abrasive media, every stage is engineered for consistency.
Electric Arc Furnace
Adjust steel composition to reduce harmful sulfur and phosphorus content.
Ladle Refining
Further purify molten steel to ensure superior material quality.
Centrifugal Casting
High-speed centrifugal forming controls shape quality and minimizes physical defects.
Defect Separation
Remove hollow or deformed particles to improve shot density and uniformity.
Secondary Hardening
Double quenching refines grain structure, enhancing toughness and inhibiting carbon deviation.
Precision Heat Treatment
Precise temperature and time control achieve optimal hardness uniformity across batches.
Grit Production
Unique crushing process improves grit fullness and angularity while minimizing internal cracks.
SAE J444 Grading
Precision screening guarantees every batch meets American SAE-J444 standard.
Every production batch is verified by 5 types of precision instruments before leaving the factory. Test standards aligned with ASTM E92, GB/T4340.2 and ISO 6507-2.
Friction-free spindle with automated testing. Precision micrometer system eliminates human error. Compliant with ASTM E92, GB/T4340.2 and ISO 6507-2.
Identifies and analyzes the microstructure of metals and alloys. Validates raw material quality and verifies post-treatment microstructure integrity.
Detects Si, Mn, P, Cr, Ni, Mo, Cu, Ti in cast iron, stainless steel, carbon steel and alloy steel. Fast and accurate multi-element screening.
Optical-mechanical-electrical-computer integrated system. Wide measuring range, strong anti-interference, accurate and reliable C/S determination.
Simulates real blasting conditions at 80 m/s centrifugal speed with 200g samples. Sieving-recycling loop measures actual shot durability under production stress.
Click to view detailed specifications for each model
Popular products among customers browsing this product
Steel Shot S70-S780 | High-carbon steel spherical abrasive, hardness HRC 40-50, SAE J827/ISO 11124 compliant. For shot b
Steel Grit G12-G120 | High-carbon steel angular abrasive, hardness GP 46-50 / GL 56-60 / GH 63-65 HRC, SAE J444/ISO 1112
Iron Grit / Chilled Iron Grit | White cast iron angular abrasive, hardness 57-67 HRC (HV 650-800), ISO 11126-7 compliant
Ultra Fine Steel Shot UFSS | Super-fine blasting medium, particle size 0.1-0.7mm, high-carbon steel spherical abrasive.
Get competitive factory price within 24 hours. No commitment required.
Get Free QuoteSteel shot is a spherical metallic abrasive manufactured through atomization. It's primarily used for shot blasting, shot peening, and surface preparation. It removes scale, rust, and old coatings while enhancing metal surface fatigue strength.
→ View Steel Shot S70-S780 product specs & selection guide
Steel shot is spherical, ideal for precision cleaning and shot peening. Steel grit is angular with stronger cutting force, suitable for aggressive rust removal and surface profiling. Choose based on your workpiece requirements.
